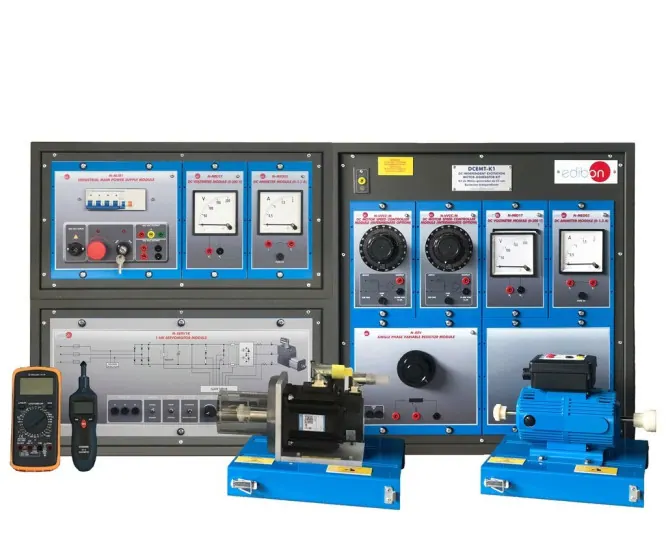

AEL-DCEMT: DC Electrical Motors Applications
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A test bench for electrical and mechanical characterisation of a range of DC motors. The tests give the significant machine characteristics, and the EM-SCADA software can be added so results are acquired and plotted from a computer.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1380 x 840 x 660 mm |
| Weight | 75 Kg approx |
| Measurement range | 0 to 200 VDC |
| Measurement range | 0 to 2 VDC |
