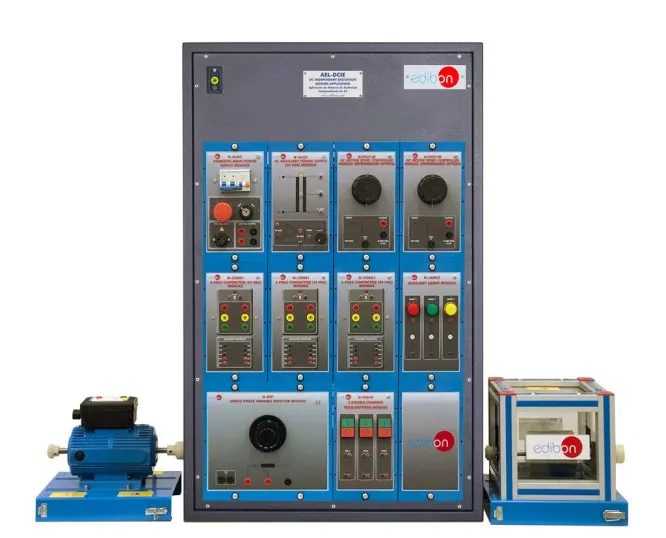

AEL-DCIE: DC Independent Excitation Motors Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the manoeuvres carried out with separately excited DC motors, wired by the student with commutators, timers and contactors. Starting, reversing and speed control by armature and by field are all studied on the modular rack.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 35 Kg approx |
| Supply voltage (Single-Phase) | 230 VAC, 1PH + N |
| Nominal voltage | 24 VAC |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
