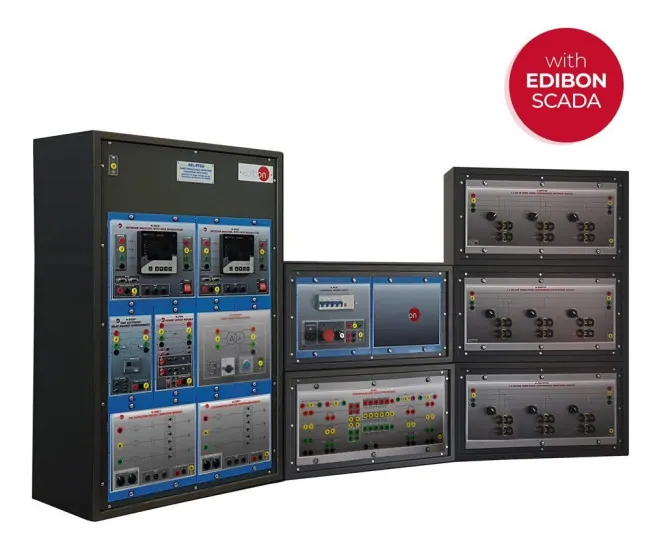

AEL-PTSG: Computer Controlled Power Transmission Smart Grid Application, with SCADA
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers transmission applications based on thyristor controlled reactors, thyristor switched capacitors, STATCOM and high voltage direct current transmission. The SCADA system supervises the compensation equipment and records the network response.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 2000 x 400 x 2000 mm |
| Weight | 85 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Line and neutral nominal current | 10 A |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
