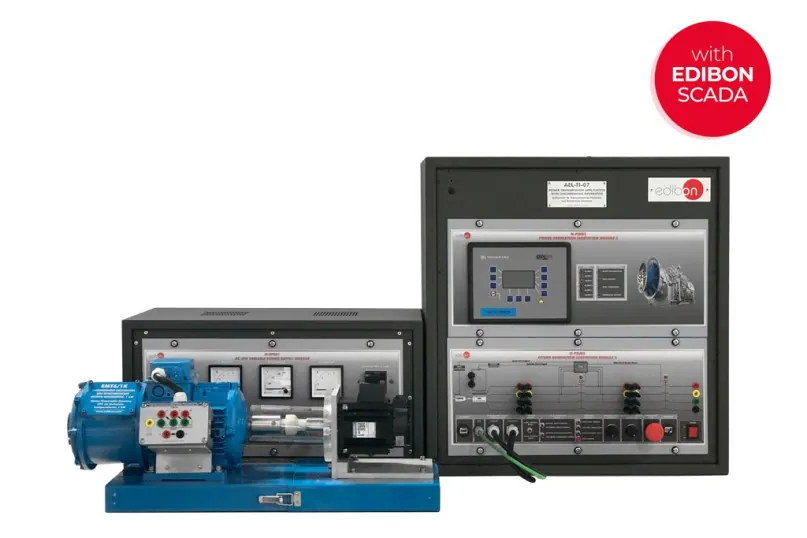

AEL-TI-07: Power Transmission Application with Synchronous Generator
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers power generation systems based on synchronous generators and the manoeuvres carried out in generation substations. Students run the machine, synchronise it and then study the transmission of its output to the network.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1000 x 400 x 1600 mm |
| Weight | 100 kg approx |
| Nominal output voltage | 3 x 400 VAC |
| Frequency | 50 / 60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
