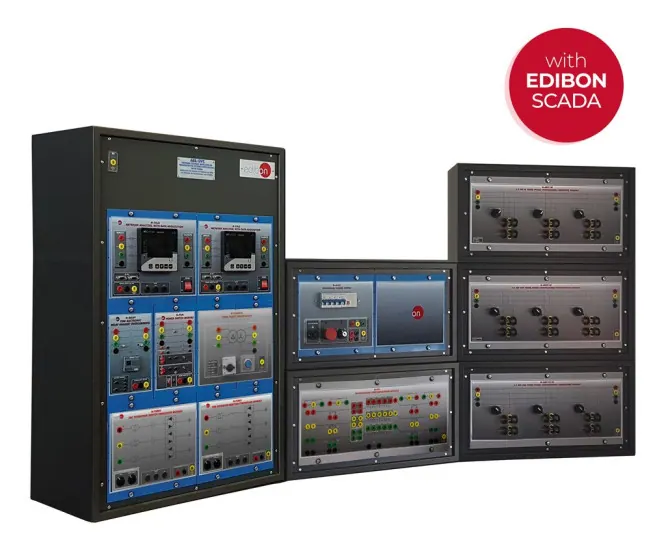

AEL-SVC: Computer Controlled Voltage Control with SVCs in Transmission Systems Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers static VAR compensation based on a thyristor controlled reactor and a thyristor switched capacitor. Students vary the firing angle and observe how reactive power is absorbed or supplied in order to hold the transmission voltage steady.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 2000 x 400 x 2000 mm |
| Weight | 85 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Line and neutral nominal current | 10 A |
