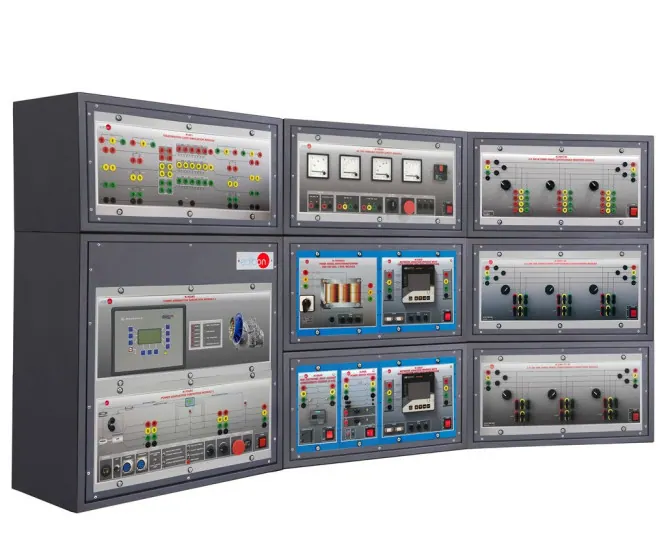

AEL-TI-06: Analysis of Power Flows in Transmission Lines Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers power flow control on high voltage transmission lines using a phase shifting transformer. Students vary the phase angle across the line and measure how active and reactive power redistribute between the available paths.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 600 x 300 x 700 mm |
| Weight | 30 Kg approx |
| Line and neutral nominal current | 10 A |
| Supply voltage | 85 to 265 VAC |
