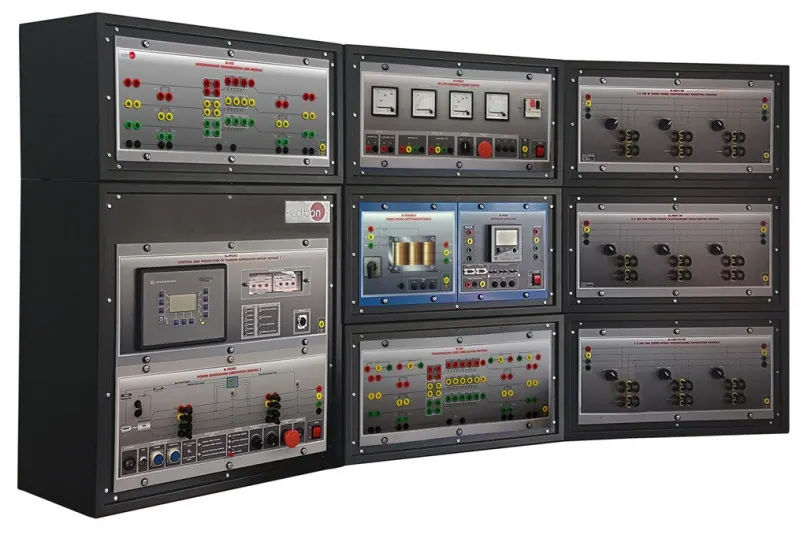

AEL-TI-04: Underground Transmission Lines Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the characteristics of underground transmission lines, including critical length, capacitive effects, characteristic impedance and energy losses. The application allows overhead and underground lines to be compared under the same conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 600 x 300 x 700 mm |
| Weight | 30 Kg approx |
| Line and neutral nominal current | 10 A |
| Supply voltage | 85 to 265 VAC |
