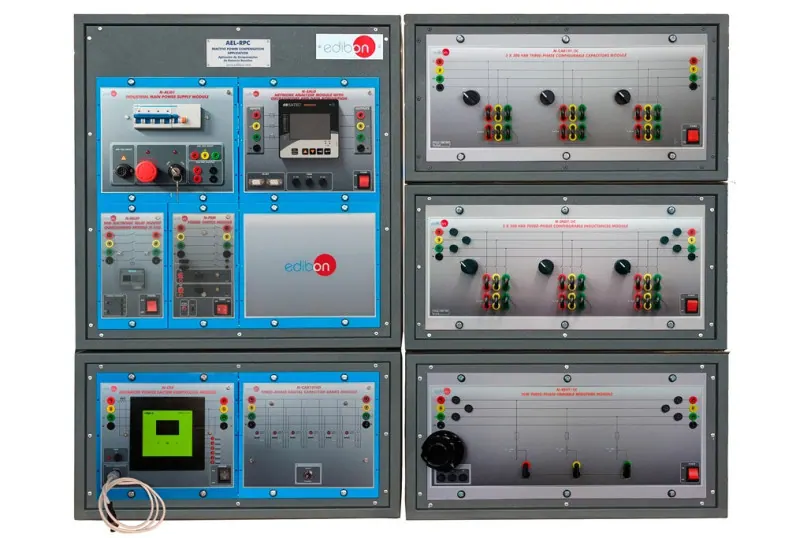

AEL-RPC: Reactive Power Compensation Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the effects of reactive loads in AC circuits and the procedures used to compensate them. Students measure active, reactive and apparent power, switch capacitors in and observe the change in power factor and line current.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1380 x 840 x 600 mm |
| Weight | 80 Kg approx |
| Nominal voltage | 400 VAC |
| Line and neutral nominal current | 10 A |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
