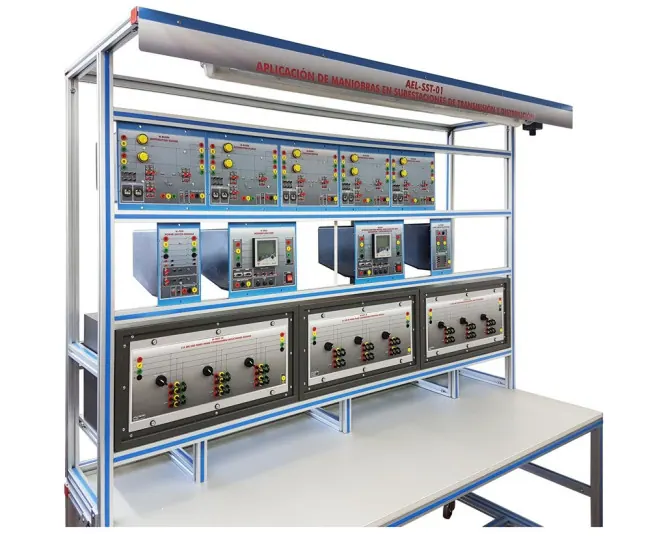

AEL-SST-01: Switching in Transmission and Distribution Substations Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the switching operations carried out in transmission and distribution substations, including transferring the electrical service from one busbar to another without interrupting supply. Students operate the switchgear in the correct sequence.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1000 x 400 x 1600 mm |
| Weight | 100 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Line and neutral nominal current | 10 A |
