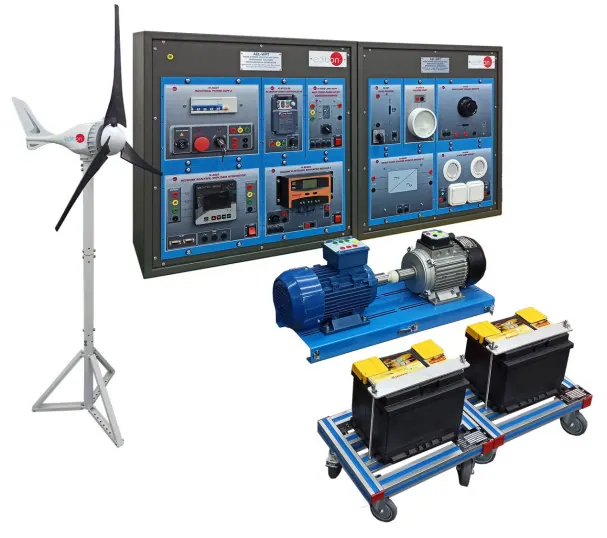

AEL-WPT: Wind Power Application with Permanent Magnets Synchronous Generator
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Stand alone wind power trainer in which a driver motor turns an AC permanent magnet synchronous generator. Built from components available on the market, it lets students follow the energy path from generator through rectifier and regulator to battery and load.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | AC permanent magnet synchronous generator driven by a driver motor |
| Specification | Stand-alone configuration, isolated from the grid |
| Specification | AC to DC rectifier feeds the charge regulator |
| Specification | Voltage regulator, batteries and LED lamp module for DC energy |
| Specification | Series of resistive loads for different energy consumption studies |
| Specification | Recommended single-phase inverter, electric grid analyser and real wind turbine, version with SCADA is AEL-WPTC |
