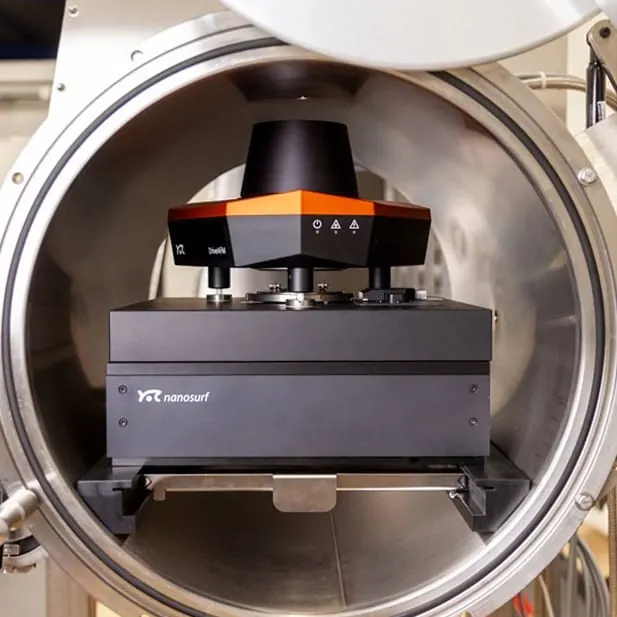

AFM Glovebox Workstation
Brand: Nanosurf | Category: Nanotechnology
A turn-key package that integrates a FlexAFM or DriveAFM into a high performance glovebox for air sensitive samples. The table, frame and vibration damping are reinforced to hold AFM performance against glovebox pump noise, and the instrument is driven from software outside the box.
Technical Specifications
| Parameter | Value |
|---|---|
| Atmosphere | below 0.1 ppm O2 and H2O |
| Sample size | up to 100 mm diameter |
| Optics | top-down view with better than 2 um lateral resolution |
| Specification | FlexAFM configuration guaranteed to resolve step heights of 200 pm or more inside the glovebox |
| Specification | Integrated signal feedthrough for AFM modes, motorised approach and sample stages |
| Specification | Magnetic cantilever holders for handling with gloves |
