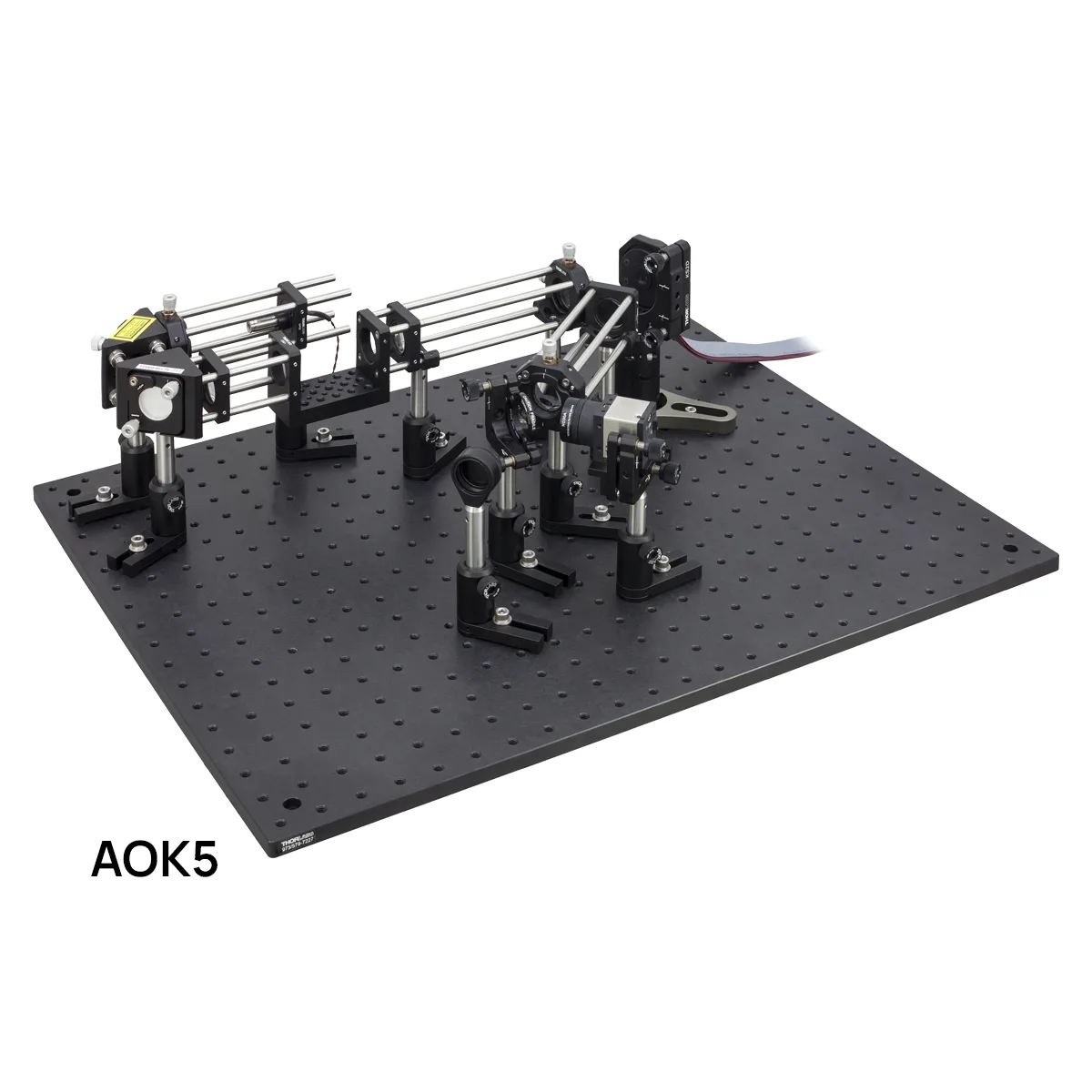

AOK Series Adaptive Optics Kits
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Complete adaptive optics systems containing one or two deformable mirrors, a Shack-Hartmann wavefront sensor, a laser diode source, imaging optics and control software. They are used for beam shaping, microscopy and teaching demonstrations.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Closed-loop operation up to 190 Hz with the CMOS wavefront sensor |
| DM140A-35-P01 MEMS deformable mirror | 140 actuators in a 12 x 12 array, 3.5 micrometre stroke |
| DMH40-P01 piezoelectric deformable mirror | 40 segments, 0 to 300 V |
| Included wavefront sensor | WFS20-5C, up to 880 fps |
| Laser diode module | 635 nm |
| Specification | Standalone Windows control software plus an SDK for custom applications |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
