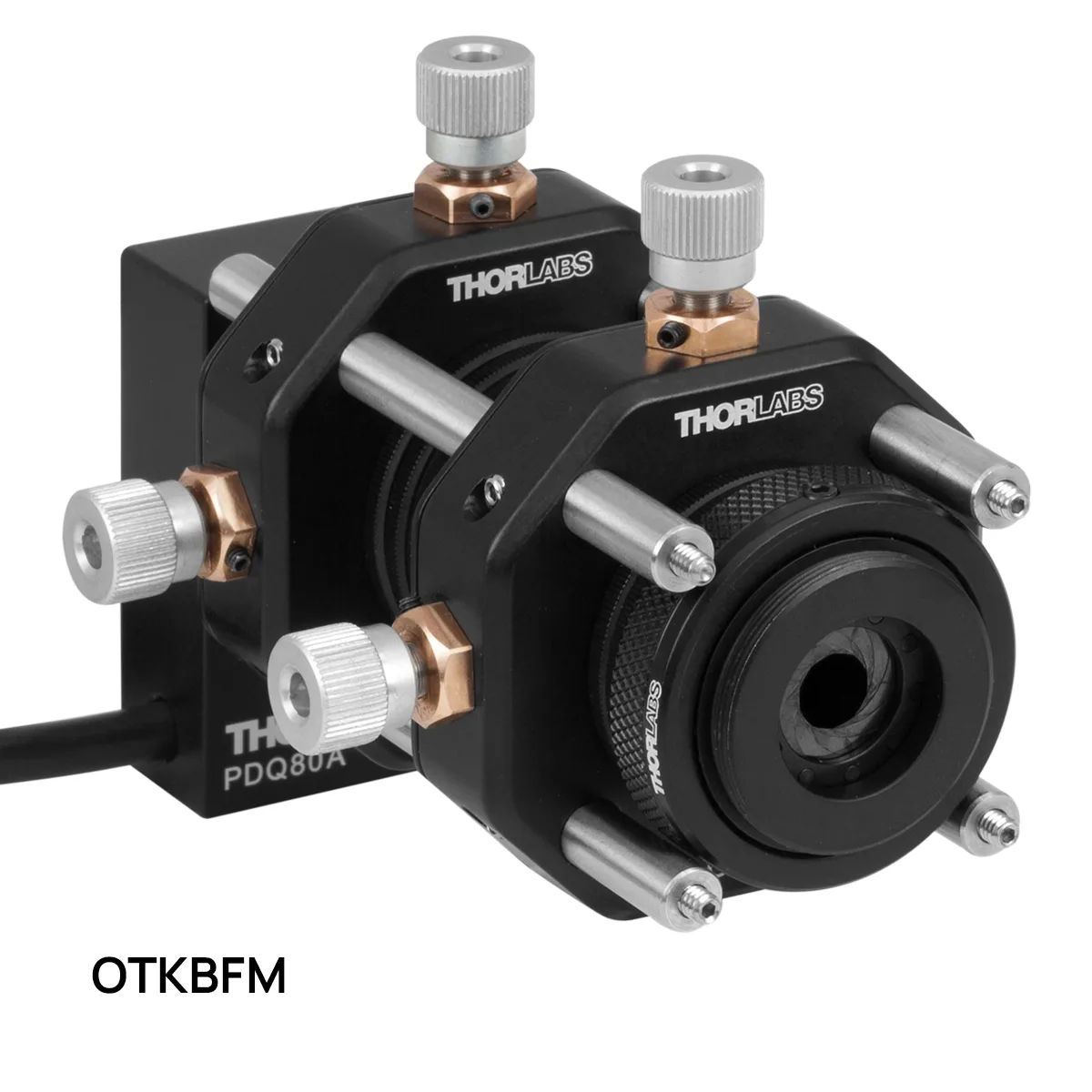

OTKB Modular Optical Tweezers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A complete inverted microscope optical trapping system for advanced laboratory courses and research. A 976 nm trap laser, oil immersion objective and piezo sample stage allow microscopic objects to be held and moved under video observation.
Technical Specifications
| Parameter | Value |
|---|---|
| Trap force | about 10 pN |
| Specification | Spot size 1.1 micrometres, depth of focus 1 micrometre |
| Trap laser | 976 nm, up to 300 mW at the fibre output |
| Objective | Nikon 100X oil immersion, NA 1.25, working distance 0.23 mm |
| Condenser | Nikon 10X air, NA 0.25, working distance 7 mm |
| Specification | 3-axis sample stage with integrated piezo actuators; CMOS camera with USB interface |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
