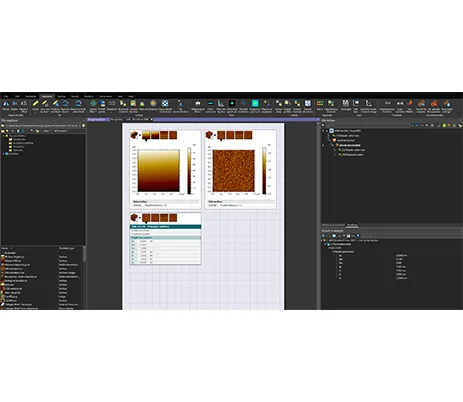

AR Maps
Brand: Oxford Instruments | Category: Nanotechnology
An analysis package for AFM data that reads both Ergo and Igor files from Jupiter family instruments. The standard level provides extensive tools to correct, normalise and denoise measured data, characterises surface and section data with ISO standard roughness, step height and distance measurement and histograms, and lets users build their own processing recipes. The advanced level adds batch processing and automation, statistics reports across datasets, critical dimension and trench analysis with cantilever tip deconvolution, image stitching and particle analysis.
Published software capabilities
| Parameter | Value |
|---|---|
| Supported data | Ergo and Igor files |
| Surface analysis | Roughness, step height, distances and histograms |
| Advanced options | Batch processing, image stitching and particle analysis |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Installed instrument/controller and software version to be supported
- Required analysis modules, licence term, number of users and data export
- Computer requirements, installation, training and update/support entitlement
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
