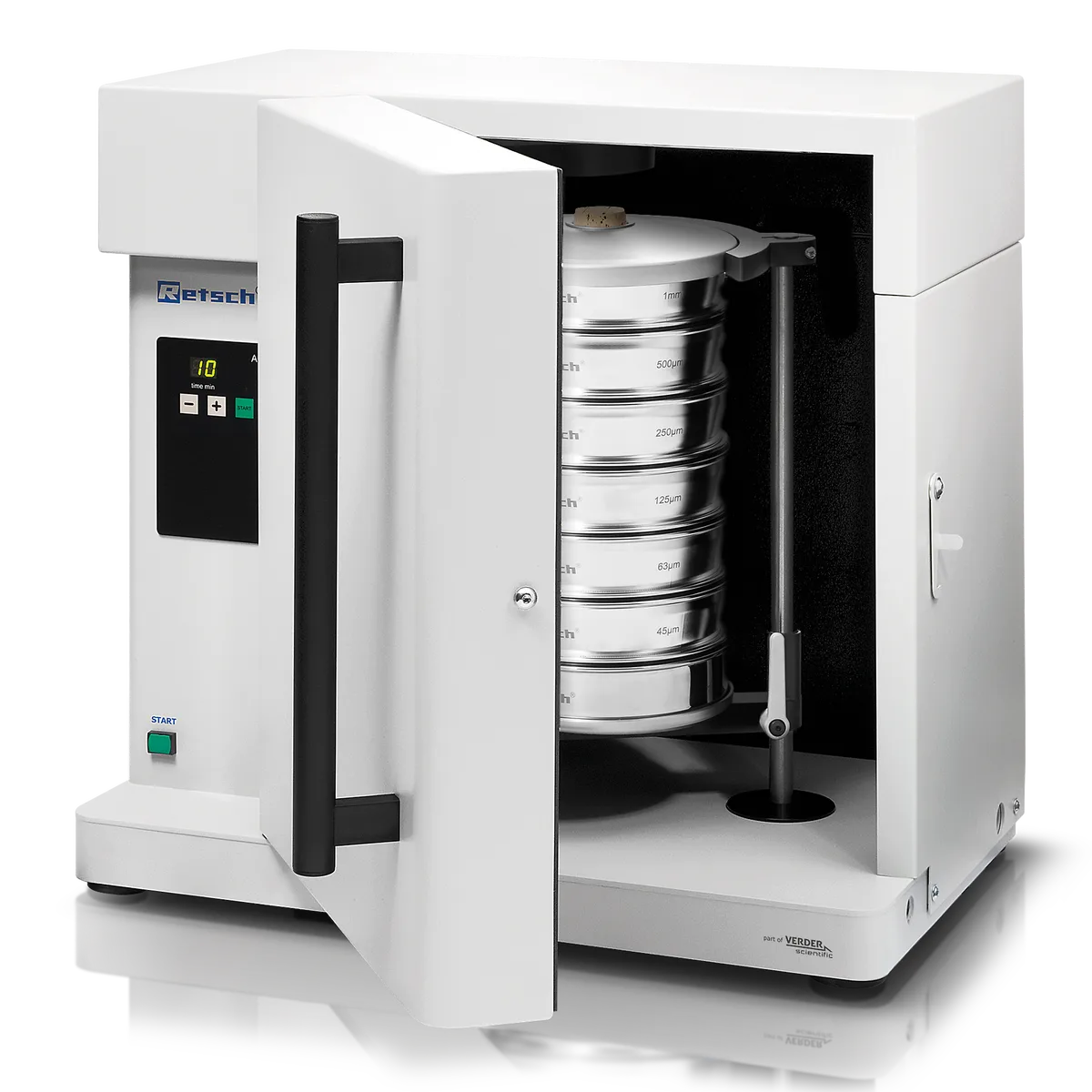

AS 200 tap: Tap Sieve Shaker
Brand: Retsch | Category: Scientific & Laboratory Equipment
Tap sieve shaker that mechanises the manual sieving procedure specified in several national standards, superimposing a vertical tapping action on a horizontal circular motion. It is used where a standard calls for tapping rather than vibration, and gives the reproducibility of a machine in place of hand sieving.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | 20 µm - 25 mm |
| Max. batch / feed capacity | 3 kg |
| Speed | 280 min-1 |
| Time display | digital, 1 - 99 min |
| Suitable sieve diameters | 200 mm / 203 mm (8") |
| Max. height of sieve stack | 380 mm |
| Power connection | 1-phase |
| W x H x D | 700 x 640 x 450 mm / with sound enclosure cabinet: 700 x 670 x 520 mm |
| Net weight | ~ 68 kg / with sound enclosure cabinet: ~ 92 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
