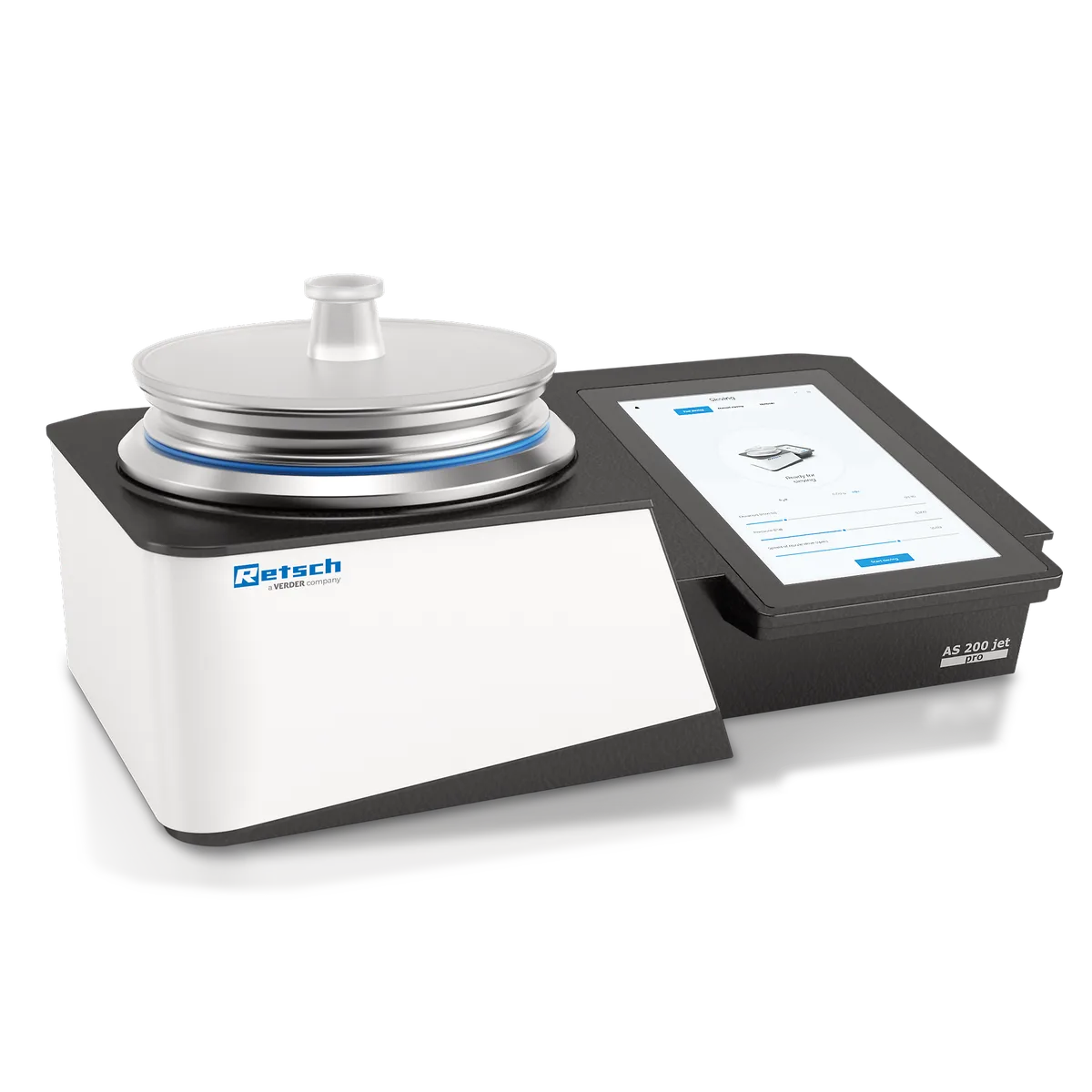

AS 200 jet pro / AS 200 jet pharma: Air Jet Sieving Machines
Brand: Retsch | Category: Scientific & Laboratory Equipment
Air jet sieving machines that combine sieving and weighing in one instrument, so the sieve does not have to be removed between fractions. The pharma version adds audit trail functionality for regulated laboratories. Both work on the rotating air jet principle for fine powders that will not disperse under vibration.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | powders |
| Measuring range | 10 µm - ~ 4 mm |
| Sieving motion | dispersion by air jet |
| Typical. batch / feed capacity | 0.3 - 100 g |
| Max. number of fractions | 1 (by using a cyclone: 2) |
| Touch screen | Yes with 10.1“ display |
| Speed | digital, 5 – 80 min-1 (nozzle) |
| Time display | digital, 00:30 – 15:00 min |
| Integrated balance | Yes, with reading accuracy 0.01 g and calibration accuracy 0.1 g |
| Vacuum | 500-6,500 Pa / 5-65 mbar / 0.07-0.95 psi |
| Digital parameter setting | Yes, software included, pro or pharma version |
| Storable SOPs | More than 40, depends only on storage capacity |
| Connectivity | Yes, 2 x USB, Ethernet |
| Interval operation | no |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | no |
| Including test certificate / can be calibrated | yes |
| Suitable sieve diameters | 203 mm (200 mm with adapter) |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
