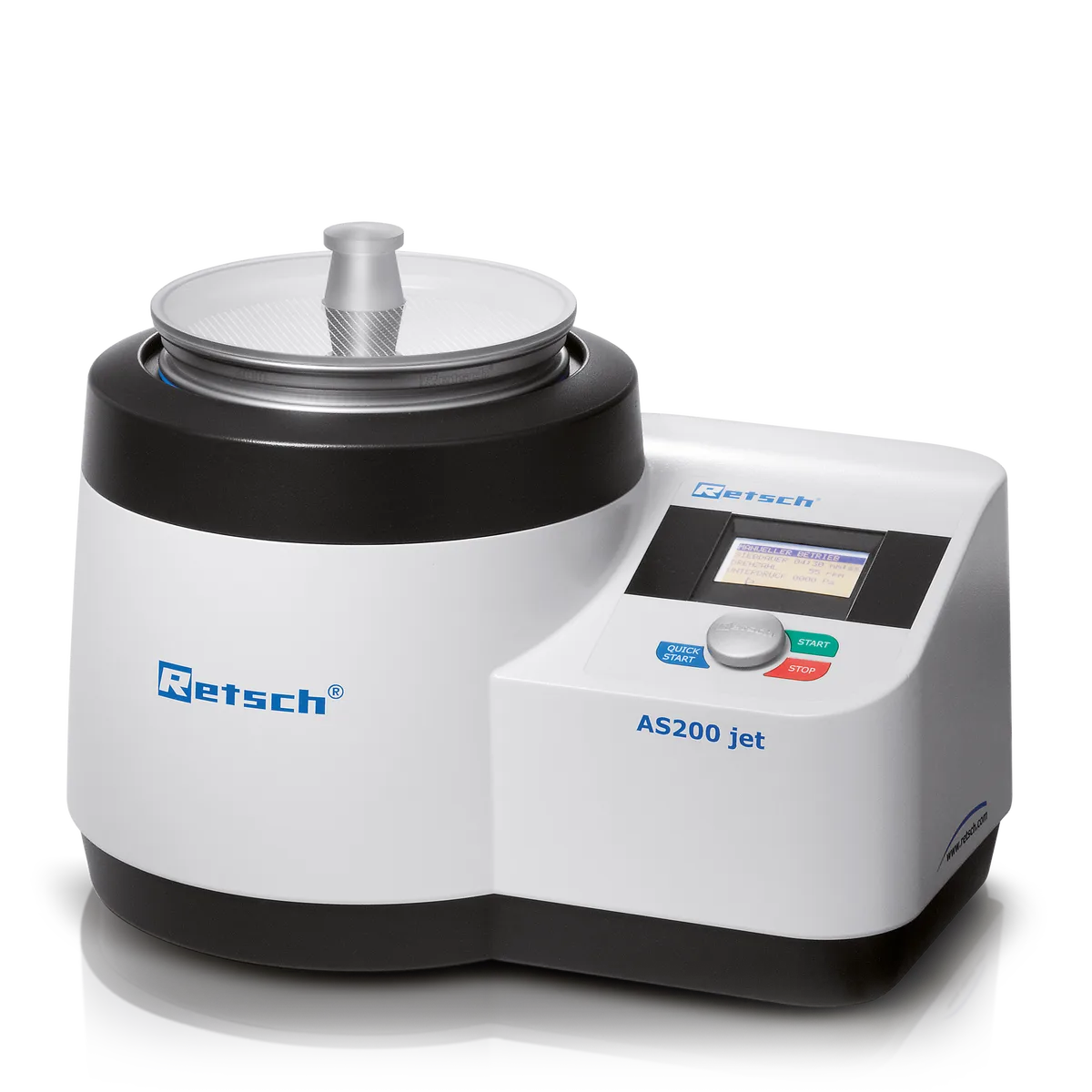

AS 200 jet: Air Jet Sieving Machine
Brand: Retsch | Category: Scientific & Laboratory Equipment
Air jet sieving machine for fine powders that agglomerate or will not pass a mesh under vibration alone. A rotating slotted nozzle blows a jet of air up through the mesh to disperse the sample while a vacuum draws the undersize away, so each cut is made on a single sieve rather than a stack. It is used where a conventional vibratory shaker cannot disperse the material.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | powders |
| Measuring range | 10 µm - ~ 4 mm |
| Sieving motion | dispersion by air jet |
| Max. batch / feed capacity | 0.3 - 100 g |
| Max. number of fractions | 1 (by using a cyclone: 2) |
| Speed | digital, 5 - 55 min-1 (nozzle) |
| Time display | digital, 00:10 - 99:59 min |
| Interval operation | no |
| Vacuum | 2,000 - 9,999 Pa / 20 - 99 mbar / 0.3 – 1.45 psi |
| Storable SOPs | 9 / Quick Start mode |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | no |
| Serial interface | yes |
| Including test certificate / can be calibrated | yes |
| Suitable sieve diameters | 203 mm (200 mm with adapter) |
| Max. height of sieve stack | 1 sieve (25 mm (1") / 50 mm ( 2")) |
| Accessories | cyclone / automatic vacuum regulation |
| Electrical supply data | 100-240 V, 50/60 Hz |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
