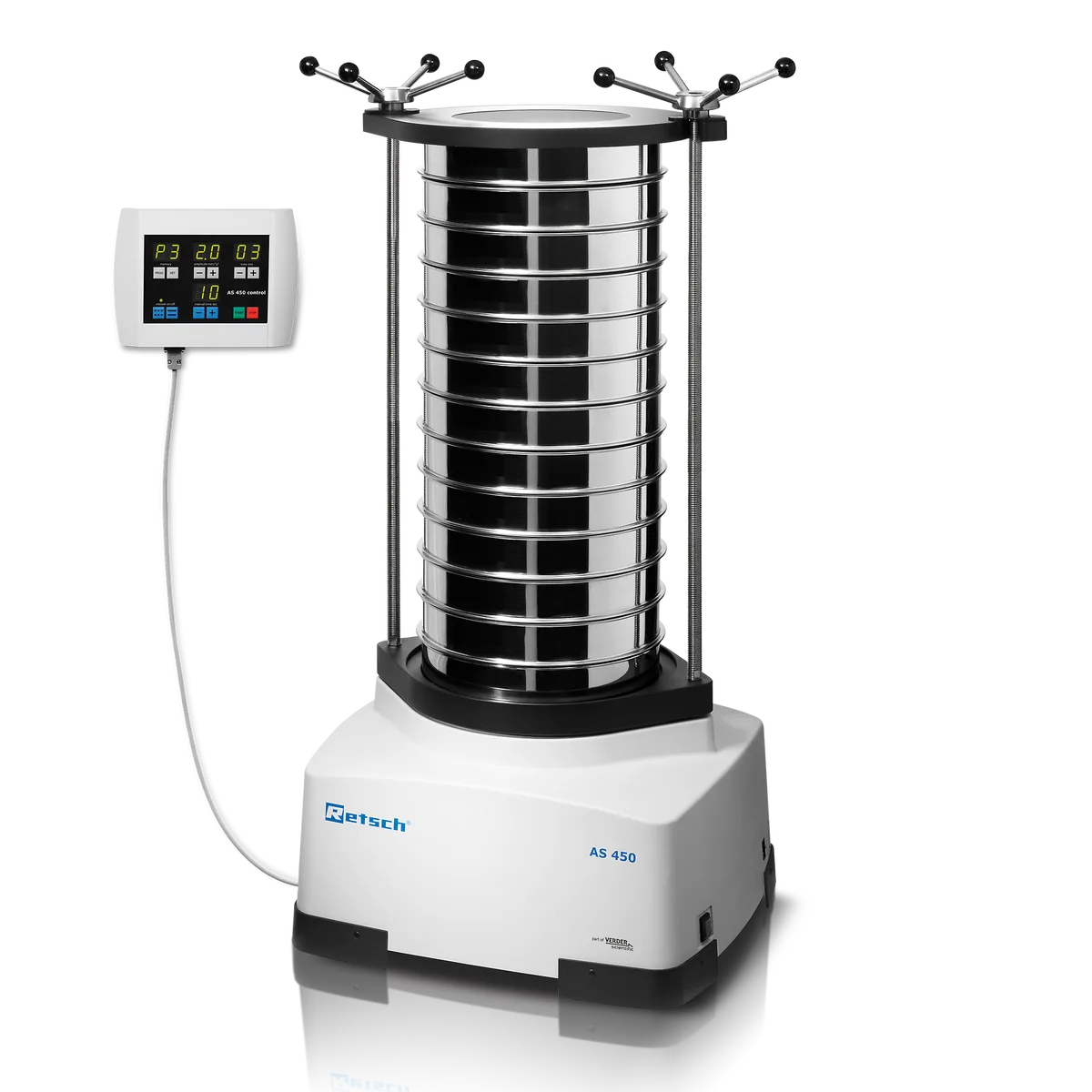

AS 450 control: Vibratory Sieve Shaker
Brand: Retsch | Category: Scientific & Laboratory Equipment
The largest vibratory sieve shaker in the Retsch range, using controlled electromagnetic tapping technology to drive sieve stacks of up to 25 kg. It accepts 400 mm and 450 mm sieves and covers a measuring range from 25 µm to 125 mm, which takes in coarse aggregate as well as fine fractions. Amplitude is digitally set and held constant regardless of load.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | 25 µm - 125 mm |
| Max. batch / feed capacity | 25 kg |
| Time display | digital, 1 - 99 min |
| Suitable sieve diameters | 400 mm / 450 mm |
| Max. height of sieve stack | 963 mm |
| Power connection | 1-phase |
| W x H x D | 705 x 440 x 635 mm |
| Net weight | ~ 220 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
