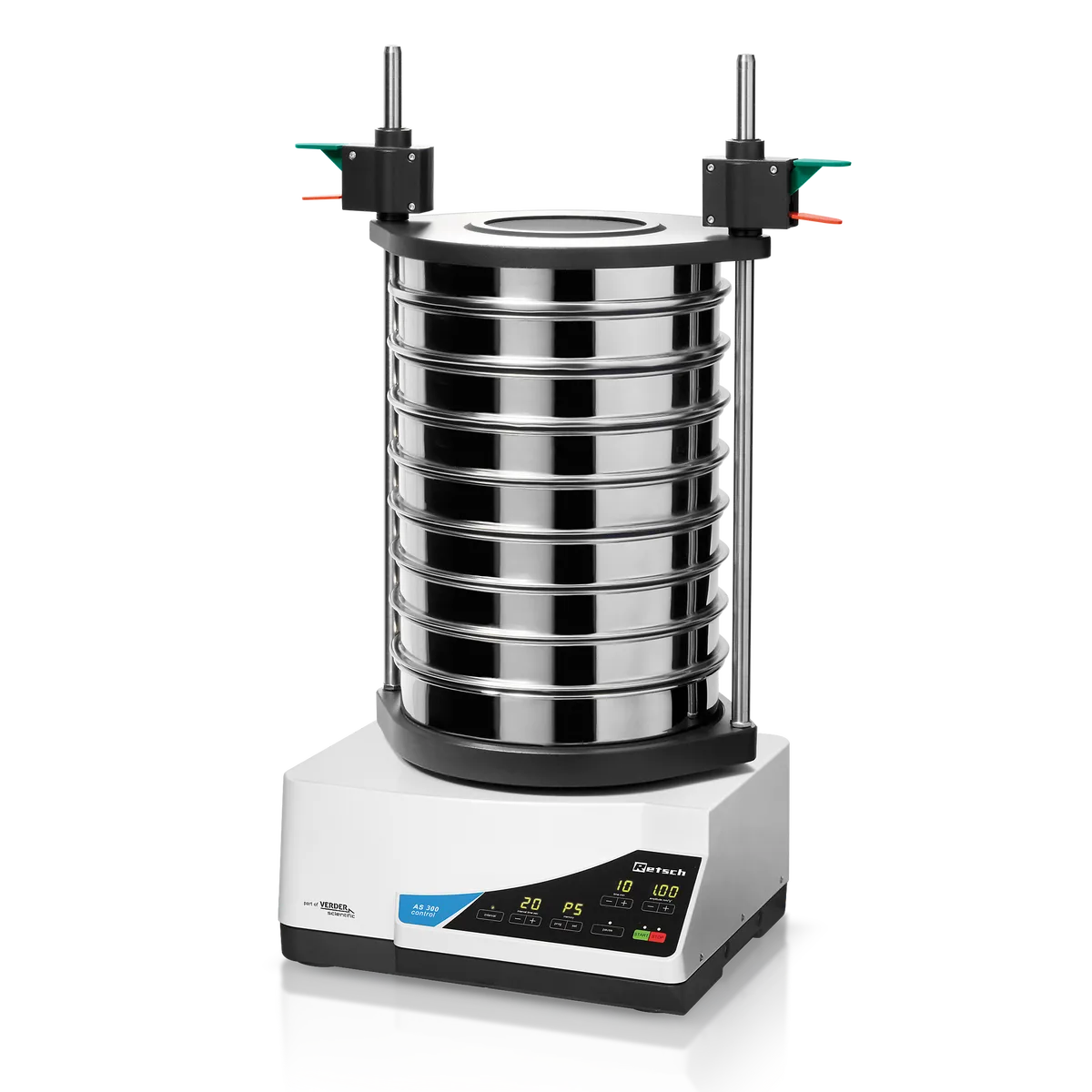

AS 300 control: Vibratory Sieve Shaker
Brand: Retsch | Category: Scientific & Laboratory Equipment
Vibratory sieve shaker built for the larger 305 mm and 315 mm sieve diameters used for aggregate and construction material grading. It uses the same controlled electromagnetic three dimensional drive as the AS 200 control, with digital parameter setting and SOP memory. Dry and wet sieving are both supported.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | powders, bulk materials, suspensions |
| Measuring range | 20 µm - 40 mm |
| Sieving motion | throwing motion with angular momentum |
| Max. batch / feed capacity | 6 kg |
| Max. mass of sieve stack | 10 kg |
| Amplitude | digital, 0.20 - > 2.20 mm |
| Controlled amplitude | yes |
| Sieve acceleration | 1.0 - > 10.0 g |
| Time display | digital, 1 - 99 min |
| Interval operation | 1 - 99 s |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | yes |
| Serial interface | yes |
| Including test certificate / can be calibrated | yes |
| Suitable sieve diameters | 100 mm / 200 mm / 203 mm (8") / 305 mm / 315 mm |
| Max. height of sieve stack | 510 mm |
| Clamping devices | standard, "comfort", each for wet and dry sieving |
| Protection code | IP 21 |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
