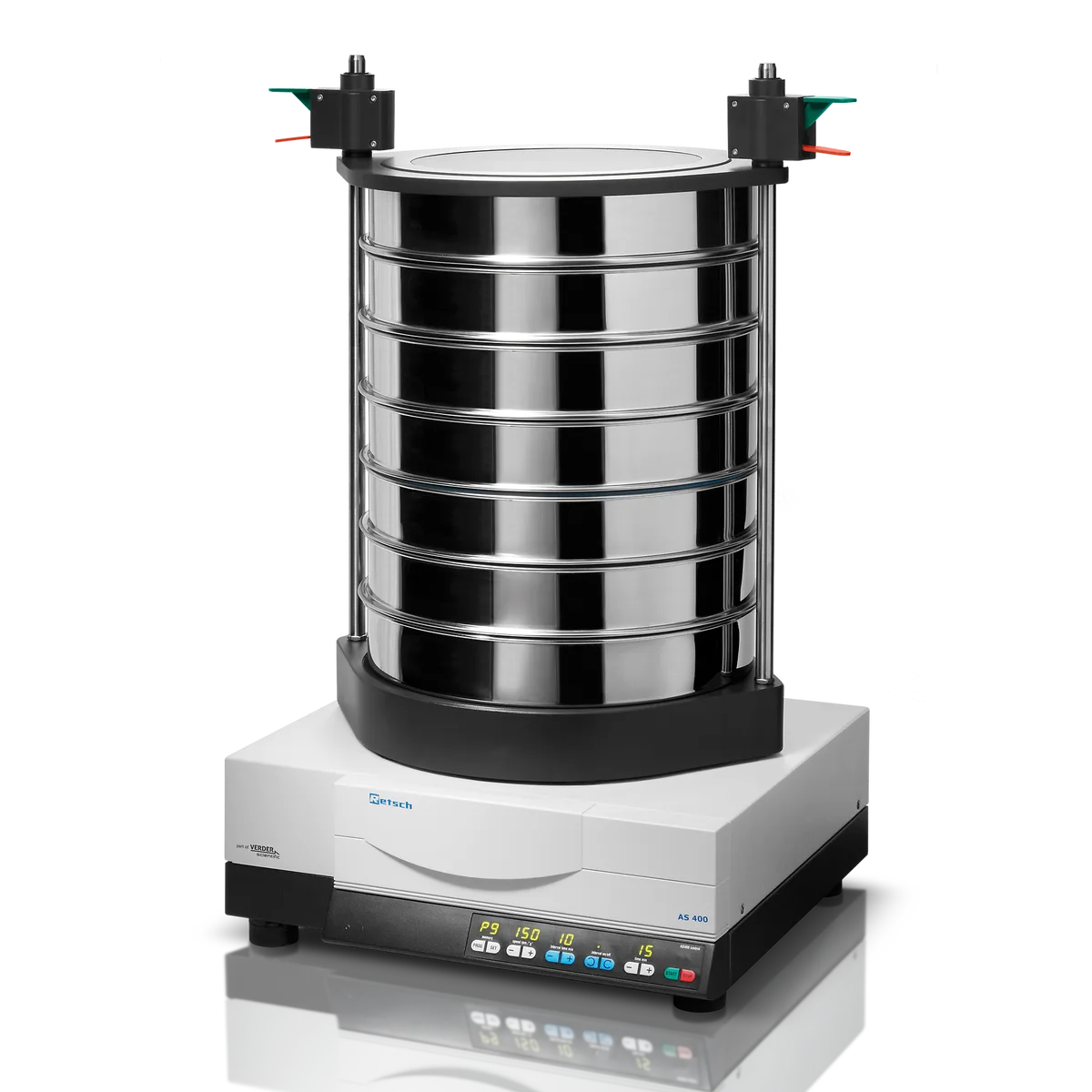

AS 400 control: Horizontal Sieve Shaker
Brand: Retsch | Category: Scientific & Laboratory Equipment
Horizontal sieve shaker that moves the sieve stack in a circular motion in the horizontal plane. That action suits needle shaped, flat, long or fibrous particles and abrasives, where a throwing motion would give a poor separation. It takes sieve diameters up to 400 mm, so it covers coarse aggregate fractions.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | 45 µm - 63 mm |
| Max. batch / feed capacity | 5 kg |
| Speed | digital, 50 - 300 min-1 |
| Time display | digital, 1 - 99 min |
| Suitable sieve diameters | 100 mm / 200 mm / 203 mm (8") / 305 mm / 315 mm / 400 mm |
| Max. height of sieve stack | 510 mm |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| W x H x D | 540 x 260 x 507 mm |
| Net weight | ~ 70 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
