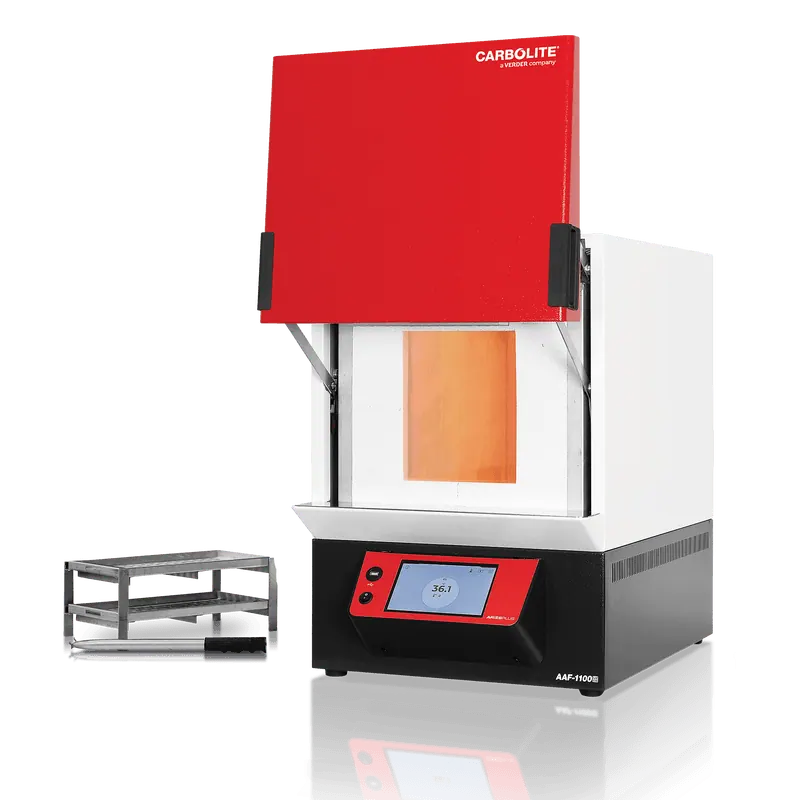

Ashing Furnace AAF 18 and 32 litre
Brand: Carbolite Gero | Category: Nanotechnology
A larger ashing furnace for laboratories where ashing is mixed with other heat treatment work. A two tier rack doubles sample capacity, and silicon carbide tiles protect the elements from carbon build-up and corrosive atmospheres.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 1100 and 1200 deg C |
| Chamber volumes | 18 and 32 litres |
| AAF 11/18 | 235 x 196 x 400 mm internal, 7080 W maximum power, 70 kg |
| Specification | Two tier rack system doubling the sample capacity |
| Specification | Silicon carbide tiles protect the elements, 2 sided heating |
| Specification | Programmable EPC3016P1 controller |
