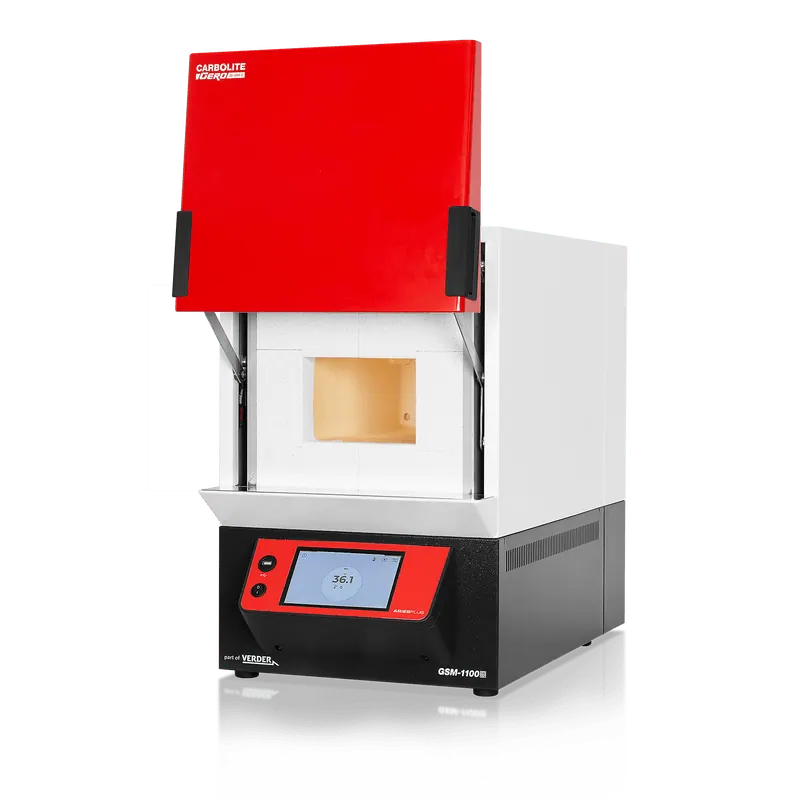

Ashing Furnace GSM
Brand: Carbolite Gero | Category: Nanotechnology
An ashing furnace whose chamber is made from fused quartz rather than alumina or silica refractory. This avoids contamination of analyses that are sensitive to alumina or silica dust, and contains corrosive vapours such as sulphuric, nitric and hydrochloric acid.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1100 deg C |
| GSM 11/8 | 8 litre volume, 120 x 175 x 345 mm internal chamber |
| Maximum continuous operating temperature | 1000 deg C |
| Specification | Maximum power 3050 W, holding power 1700 W |
| Specification | Fused quartz furnace chamber, 4 sided heating |
| Specification | Carbolite 301 controller with single ramp to set-point and process timer |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
