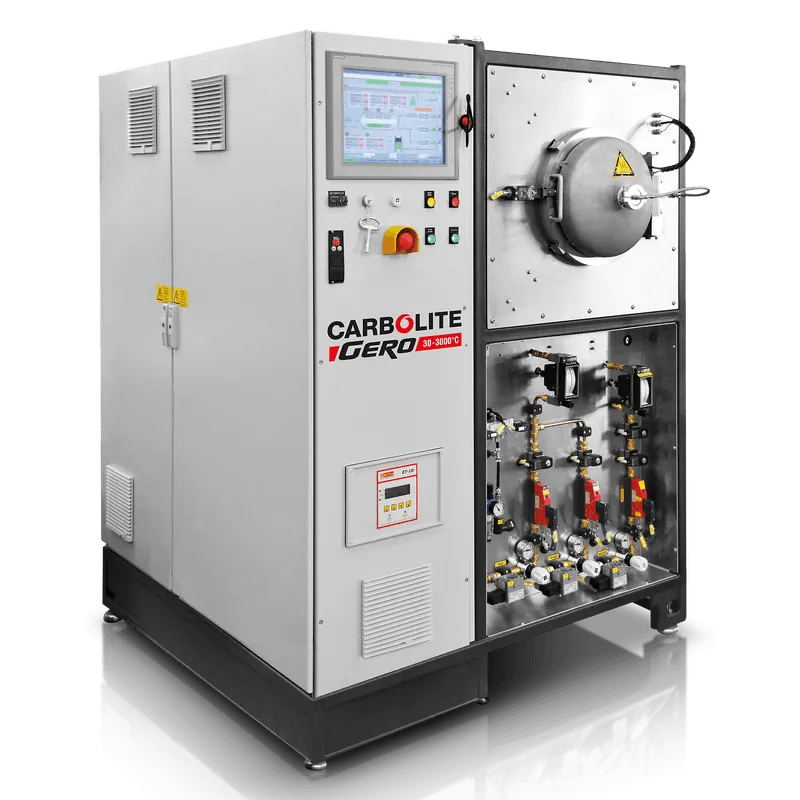

Annealing Furnace GLO
Brand: Carbolite Gero | Category: Nanotechnology
An annealing furnace built around a vacuum tight retort with symmetrically placed CrFeAl heating elements. Vacuum and nitrogen purge cycles clear oxygen before heat treatment starts under inert atmosphere at slight overpressure.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1100 deg C for heat treatment with an atmosphere |
| Sizes | 5, 10, 40, 75, 120, 260, 400, 550, 600, 850, 950 and 1300 litres |
| GLO 10/11-1G | usable space 250 mm diameter x 600 mm, 14 kW |
| Retort material | temperature resistant steel alloy 1.4841, others on request |
| Nitrogen or argon flow | 200 to 2000 l/h |
| Specification | Optional hydrogen safety system with nitrogen flooding tank, all devices SIL2 certified |
