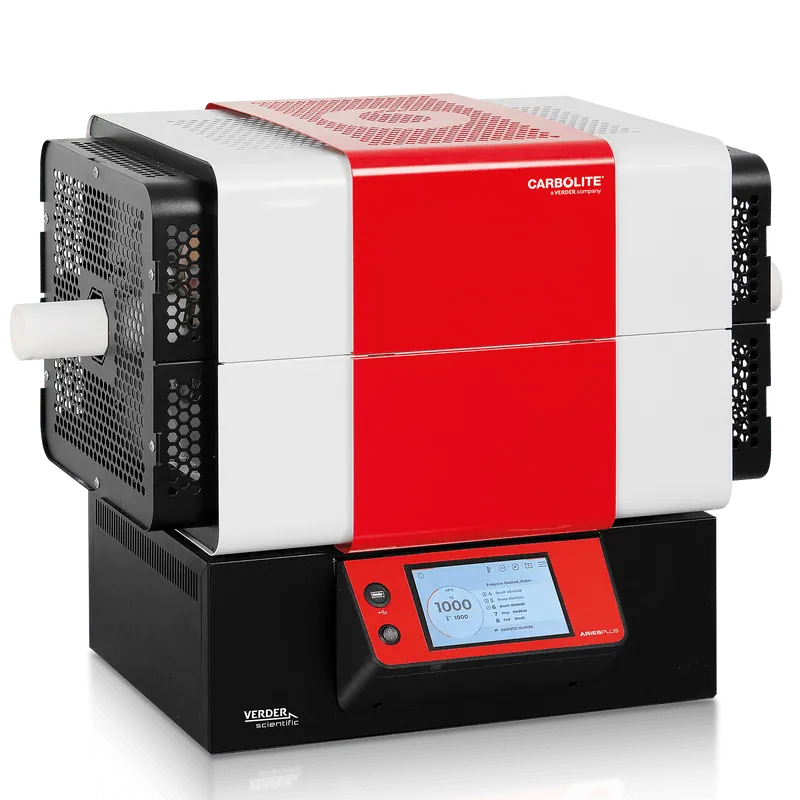

TF Tube Furnace Range
Brand: Carbolite Gero | Category: Nanotechnology
A universal tube furnace range with slide-in accessory work tubes and tube adapters, so one furnace can take several tube diameters. Optional work tube packages equip the furnace for vacuum or modified atmosphere operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperatures | 1100, 1200 and 1600 deg C |
| Furnace bore diameters | 32, 60, 100 and 125 mm |
| Heated lengths | 150, 180, 300, 450, 600, 800, 1000 and 1200 mm |
| Number of heated zones | 1 zone or 3 zones |
| Orientation | all models available horizontal or vertical |
| Specification | Optional work tube packages for vacuum or modified atmosphere |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
