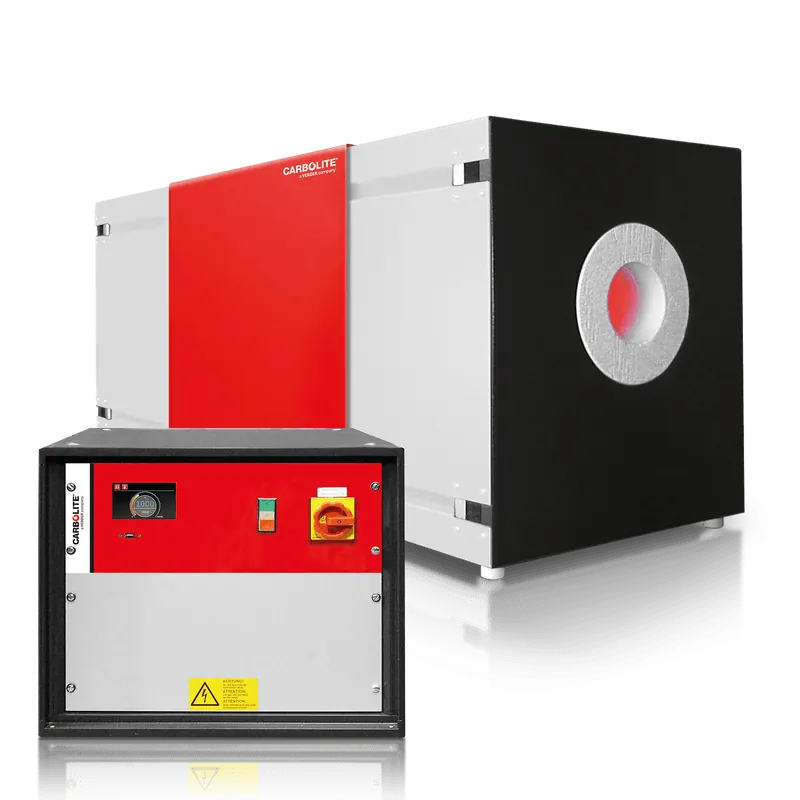

Tube Furnace FHA / FHC
Brand: Carbolite Gero | Category: Nanotechnology
Single zone FHA and three zone FHC tube furnaces for horizontal or vertical use up to 1350 deg C. Ceramic fibre modules carry a 5 mm APM wire element held by a ceramic ridge, and a separate control box is supplied with a 3 m cable.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1350 deg C |
| Specification | Accepts work tubes with outer diameters up to 110 mm |
| Heated lengths | 200, 500, 750, 1000 or 1250 mm |
| Controllers | FHA with EPC3016P1, FHC with CC-T1, both 24 segment programmable |
| Specification | High grade type S control thermocouple |
| Specification | Available with up to 8 heating zones for precise temperature control |
