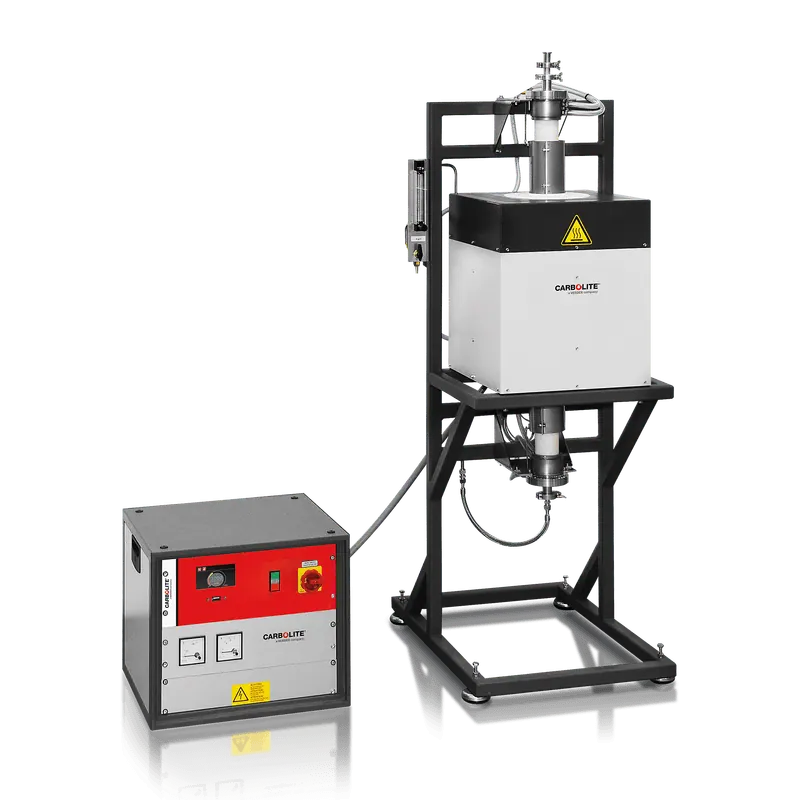

High Temperature Vertical Tube Furnace HTRV
Brand: Carbolite Gero | Category: Nanotechnology
A tube furnace optimised for vertical orientation and operation up to 1800 deg C. Fibre plate insulation and vertically hanging molybdenum disilicide elements sit in a rectangular housing with convection cooling holes.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1800 deg C |
| Heated lengths | 100, 250 or 500 mm |
| Specification | Accepts work tubes with outer diameters up to 100 mm for modified atmosphere |
| Specification | Accepts work tubes with outer diameters up to 200 mm for use in air |
| Specification | High grade type B thermocouple |
| Specification | Programmable EPC3016P1 controller with over-temperature protection |
