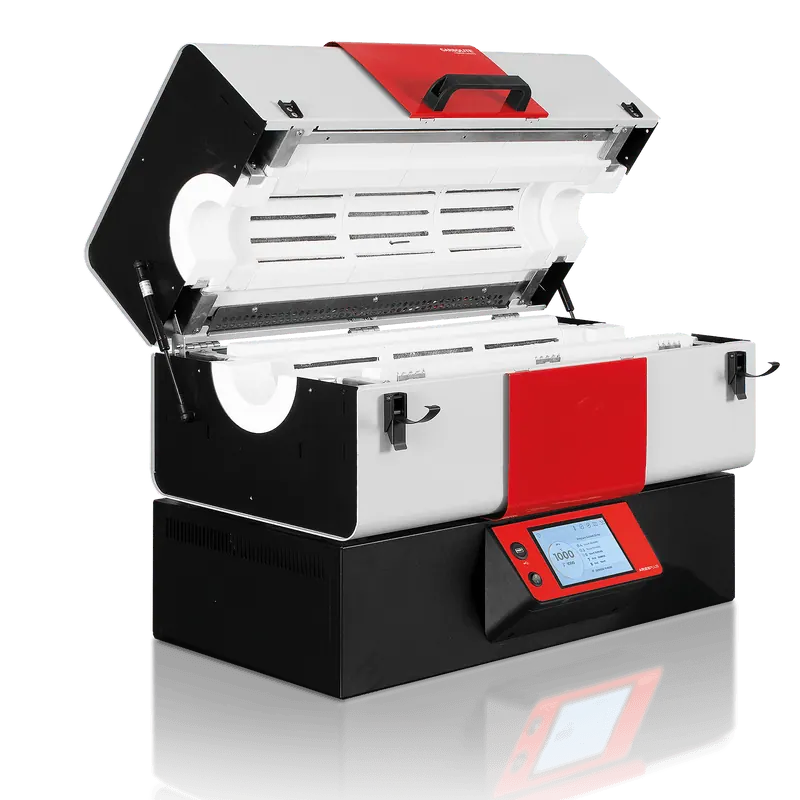

TS Split Tube Furnace Range
Brand: Carbolite Gero | Category: Nanotechnology
A split tube furnace range whose body opens in two halves on a rear hinge with pneumatic damping struts. Opening the furnace makes it easier to change work tubes or to fit reactors with end flanges that will not pass through a solid furnace.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1200 deg C |
| Furnace bore diameters | 60, 125 and 200 mm |
| Heated lengths | 150, 300, 450, 600, 800, 1000 and 1200 mm |
| Number of heated zones | 1 zone or 3 zones |
| Orientation | all models available horizontal or vertical |
| Specification | Optional work tube packages for vacuum or modified atmosphere |
