Split Tube Furnace FST / FZS
Brand: Carbolite Gero | Category: Nanotechnology

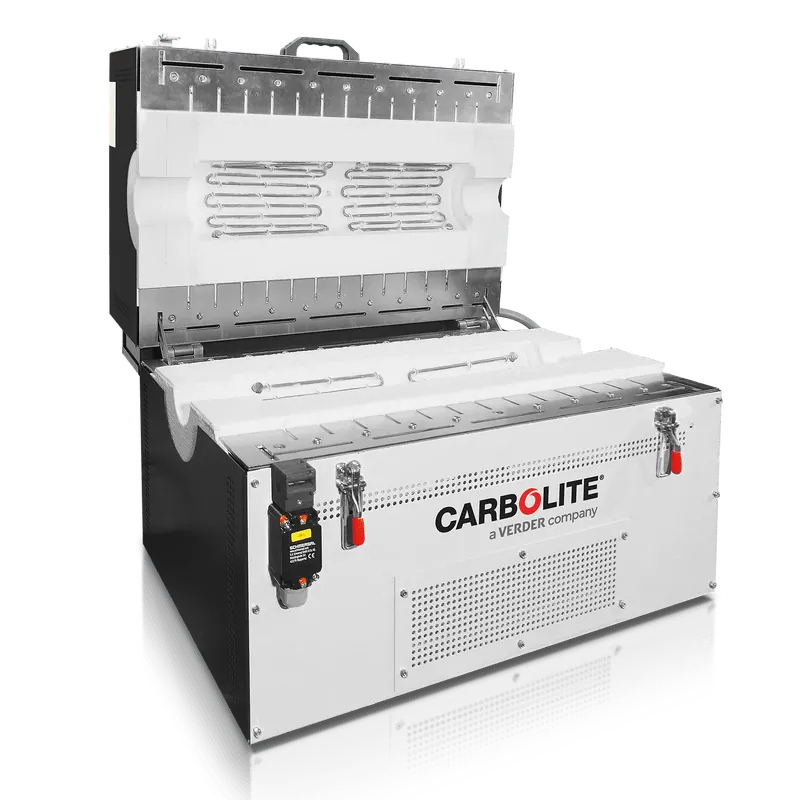

Single zone FST and three zone FZS split tube furnaces for horizontal or vertical use up to 1300 deg C. Two ceramic fibre halves carry APM wire elements, and a safety switch cuts power to the elements as soon as the furnace is opened.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1300 deg C |
| Specification | Accepts work tubes with outer diameter up to 150 mm |
| Single zone heated lengths | 200, 500 or 1000 mm |
| Three zone heated lengths | 500 or 1000 mm |
| Controllers | FST with EPC3016P1, FZS with CC-T1, both 24 segment programmable |
| Specification | Over-temperature protection and element safety switch on opening |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
