TSR Rotating Tube Furnace Range
Brand: Carbolite Gero | Category: Nanotechnology

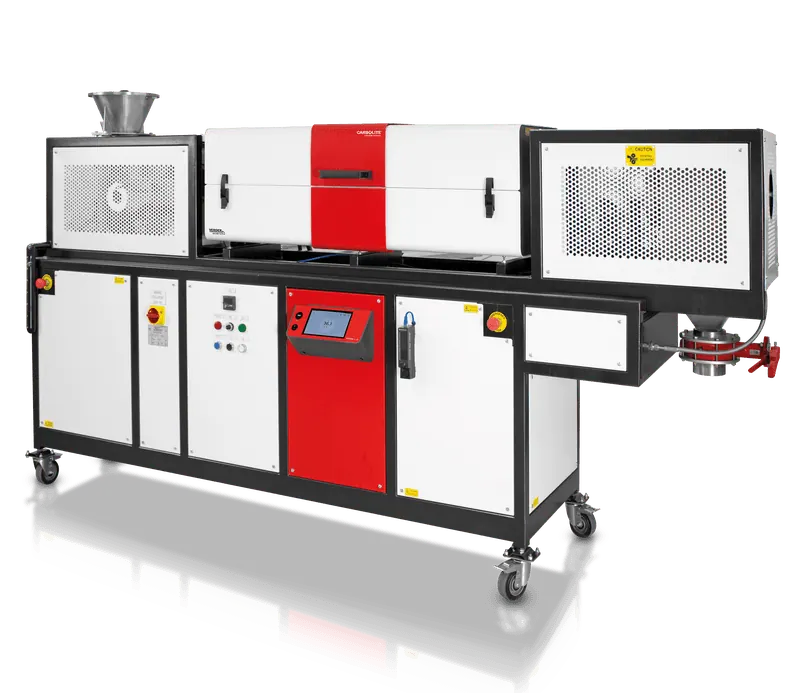

A split tube furnace mounted horizontally on a base frame with a friction drive rotation system, for processing large batches of free flowing material such as powders. Rotation increases the sample surface exposed to the atmosphere in the work tube.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1150 deg C |
| Furnace bore diameter | 125 mm |
| Heated length | 1000 mm |
| Number of heated zones | 1 zone or 3 zones |
| Work tube rotation | up to 10 rpm, frame tilts manually up to 6 degrees |
| Specification | 5 litre vibratory feeder and collection hopper for continuous processing |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
