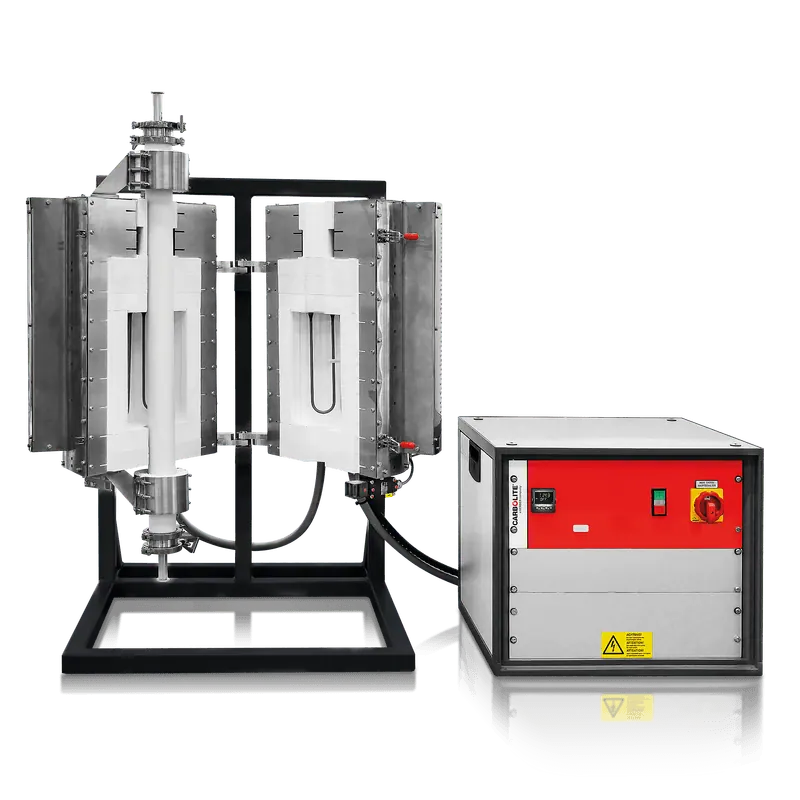

Split Tube Furnace HTRV-A
Brand: Carbolite Gero | Category: Nanotechnology
A split tube furnace for vertical use up to 1700 deg C. The two chamber halves are high grade insulation plates with vertically hanging molybdenum disilicide elements, and a safety switch cuts the element supply when the furnace is opened.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 1600 and 1700 deg C |
| Heated lengths | 120, 250, 500 or 700 mm |
| Specification | Accepts work tubes with outer diameters up to 100 mm for modified atmosphere |
| Specification | High grade type B thermocouple |
| Specification | Programmable EPC3016P1 controller with over-temperature protection |
| Specification | Supplied with separate control box, 3 m cable, plug and socket |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
