TSO Rotary Reactor Tube Furnace Range
Brand: Carbolite Gero | Category: Nanotechnology

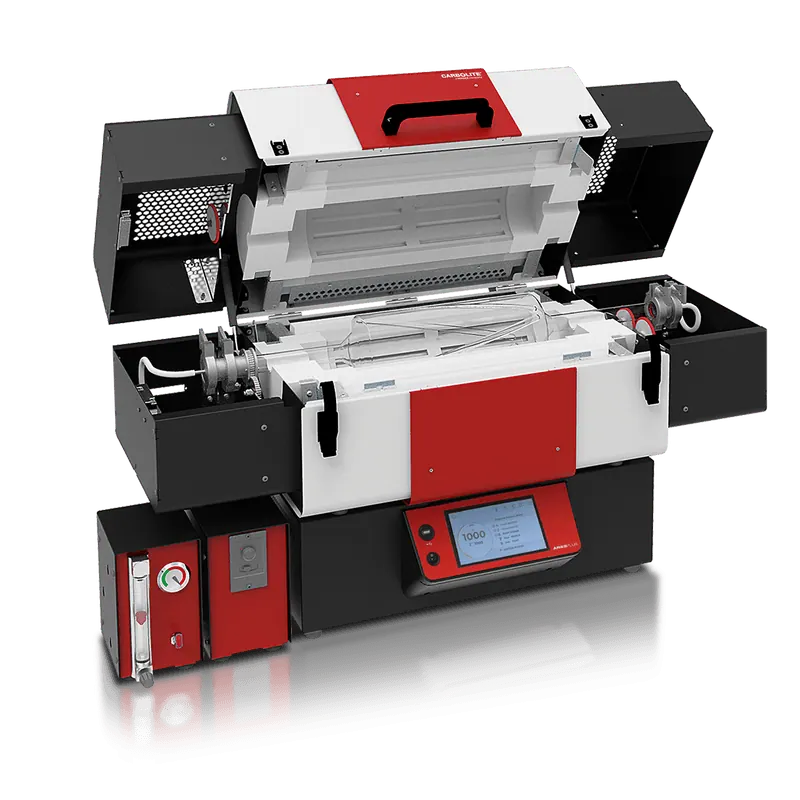

A rotary and oscillatory reactor tube furnace for processing or testing powdered and granular materials at high temperature. A quartz vessel inside the split furnace body is rotated through 314 degrees by a variable speed drive to create an oscillating motion.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1100 deg C |
| Reactor vessel diameter | 120 mm |
| Heated lengths | 400, 600, 800 and 1000 mm |
| Specification | Variable speed drive rotates the vessel through 314 degrees |
| Specification | Split body opens on a rear hinge with pneumatic damping struts |
| Specification | Optional standard or fluted vessels, air or modified gas atmosphere operation |
