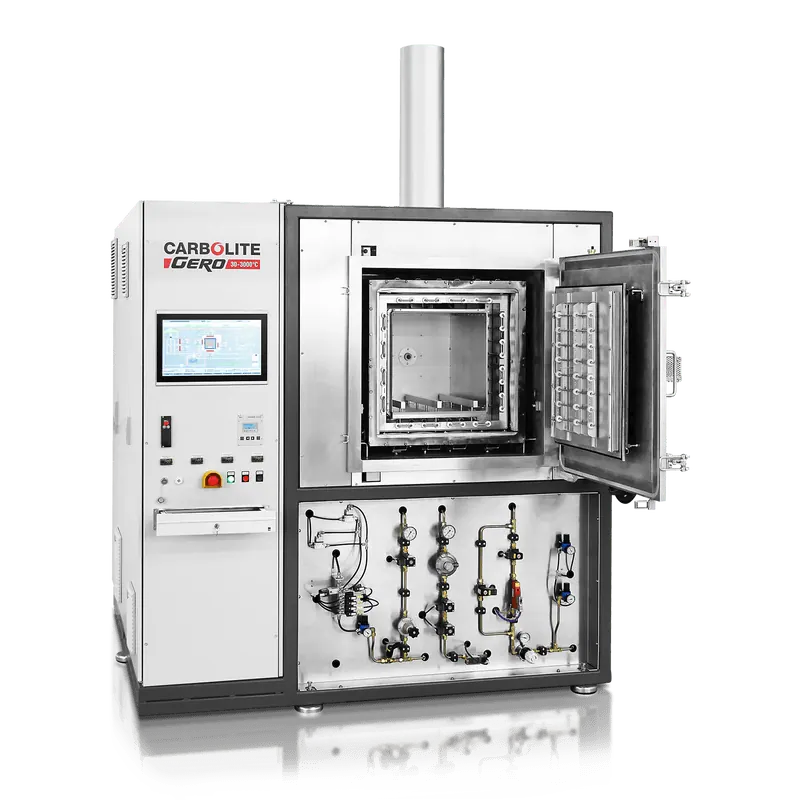

Vacuum Chamber Furnace HTK MO / HTK W
Brand: Carbolite Gero | Category: Nanotechnology
A metallic vacuum chamber furnace with heating elements and insulation in molybdenum or tungsten. The all metal construction gives the highest inert atmosphere purity and the best final vacuum level, and a front door simplifies loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 2200 deg C for HTK W, 1600 deg C for HTK MO |
| Usable volumes | 8, 25, 80 and 120 litres |
| HTK 120 MO maximum temperature | 1450 deg C |
| Heated zones | 1 zone on 8 and 25 litre, 4 zones on 80 and 120 litre |
| Common gases | nitrogen, argon, hydrogen and mixtures |
| Specification | Optional retort to guide gas flow for debinding or improved uniformity |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
