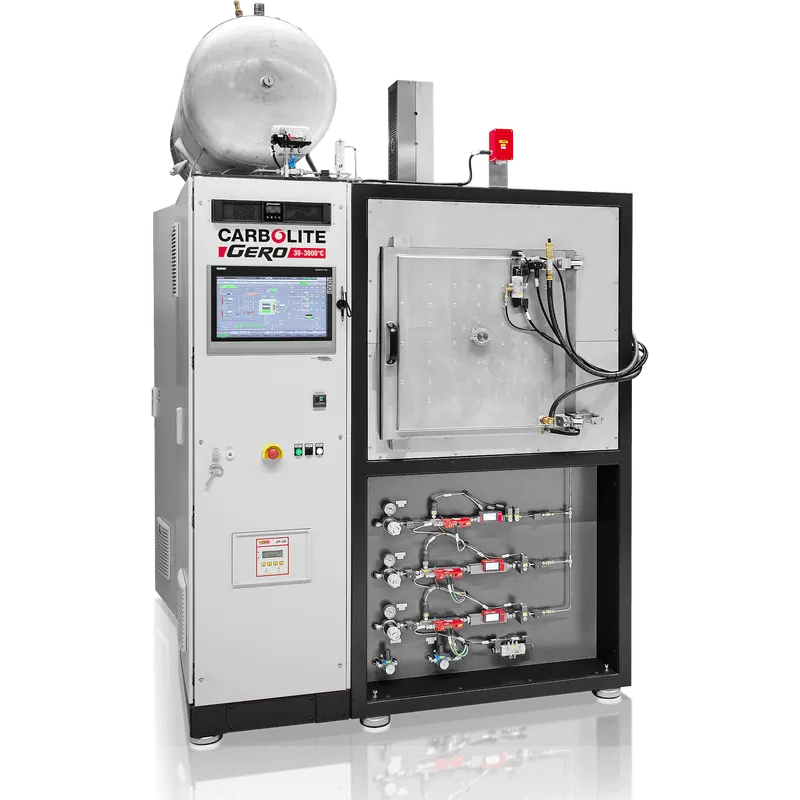

Vacuum Chamber Furnace HTK KE
Brand: Carbolite Gero | Category: Nanotechnology
A chamber furnace insulated with ceramic fibre, so it can run under a defined oxygen mixture or 100 per cent pure oxygen. It is used for ceramic injection moulding, debinding in air and sintering in air.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1350 deg C with CrFeAl elements, 1800 deg C with MoSi2 elements |
| Available sizes | 8, 25, 80, 220, 400 and 600 litres |
| Specification | Operation under air or with 100 per cent oxygen |
| Specification | Ceramic fibre insulation, vacuum operation limited to rough vacuum for short durations |
| Specification | Elements at the bottom, left, right and top of the chamber for uniformity |
| Specification | Data recording for quality management |
