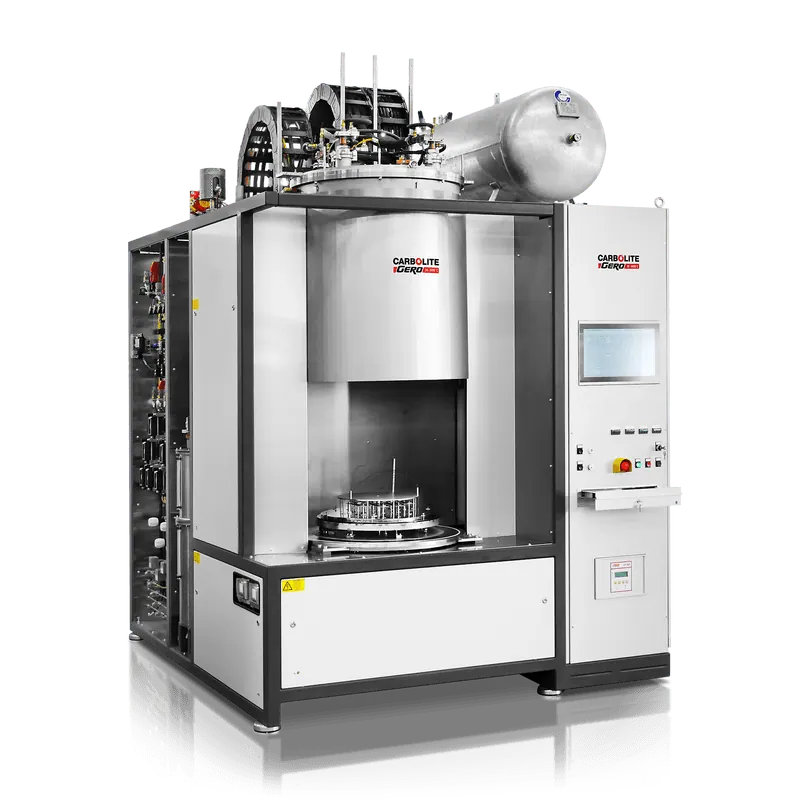

Vacuum Hood Furnace HBO MO / HBO W
Brand: Carbolite Gero | Category: Nanotechnology
A metallic hood furnace built for the lowest operating pressures and the highest gas purity. Radiation shields made from the same material as the elements replace fibrous insulation, and each of the three heating zones is controlled individually.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1600 deg C with molybdenum, 2200 deg C with tungsten |
| Specification | Final vacuum level better than 5x10-6 mbar |
| Specification | Partial pressure control between 10 and 1000 mbar |
| Gases | nitrogen, argon and hydrogen, pure or mixed, others on request |
| Specification | Three individually controlled heating zones |
| Specification | Ultrahigh vacuum options available on request |
