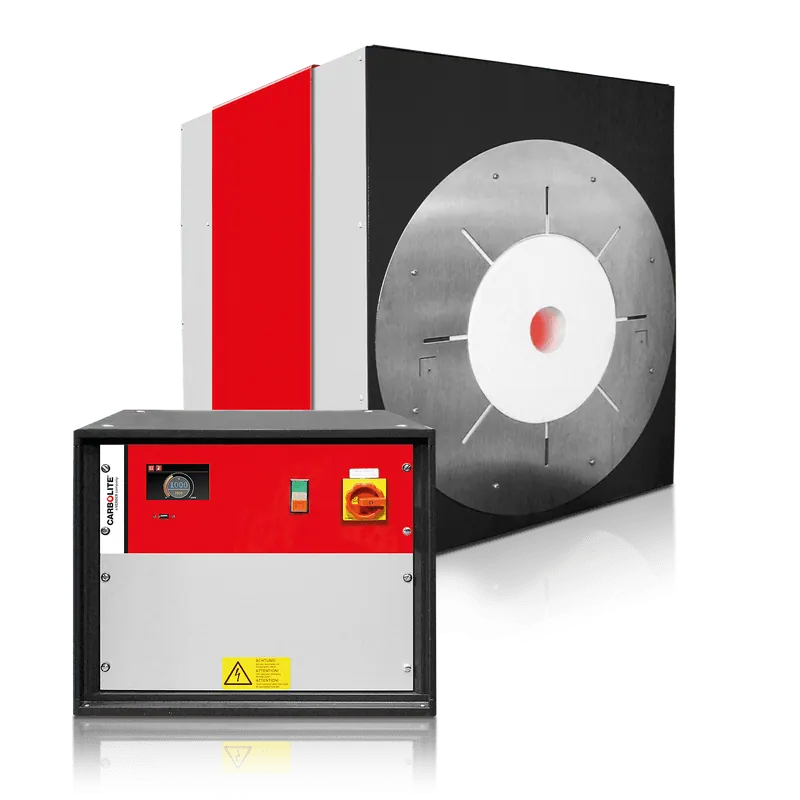

High Temperature Horizontal Tube Furnace HTRH
Brand: Carbolite Gero | Category: Nanotechnology
A horizontal tube furnace for use up to 1800 deg C with vertically hanging molybdenum disilicide elements in a rectangular housing. The three zone HTRH-3 version gives better uniformity and is useful for preheating process gases.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1800 deg C |
| Specification | Accepts work tubes with outer diameters up to 100 mm for modified atmosphere |
| Specification | Accepts work tubes with outer diameters up to 200 mm for use in air |
| Controllers | HTRH with EPC3016P1, HTRH-3 with CC-T1, both 24 segment programmable |
| Specification | Vertically hanging molybdenum disilicide heating elements, easily replaced |
| Specification | Work tube is not included and must be selected separately |
