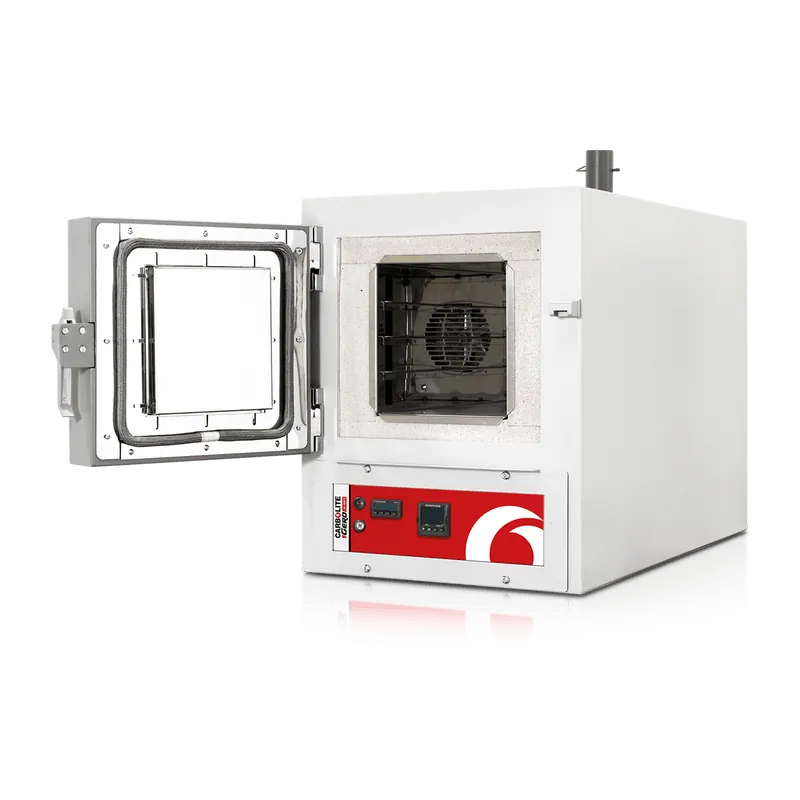

Air Recirculating Oven HRF
Brand: Carbolite Gero | Category: Nanotechnology
A 750 deg C air recirculation oven range of two bench mounted and two floor standing models. Powerful fans and horizontal air guides give rapid heating with high thermal transfer to the chamber contents and good uniformity.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 750 deg C |
| Chamber volumes | 22, 45, 112 or 324 litres |
| HRF 7/22C | 220 x 200 x 495 mm internal, 3000 W maximum power, 61 kg |
| HRF 7/324 | 600 x 600 x 900 mm internal, 24000 W maximum power |
| Specification | Wire elements located in both sides of the chamber, stainless steel liner |
| Specification | Programmable EPC3016P1 controller |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
