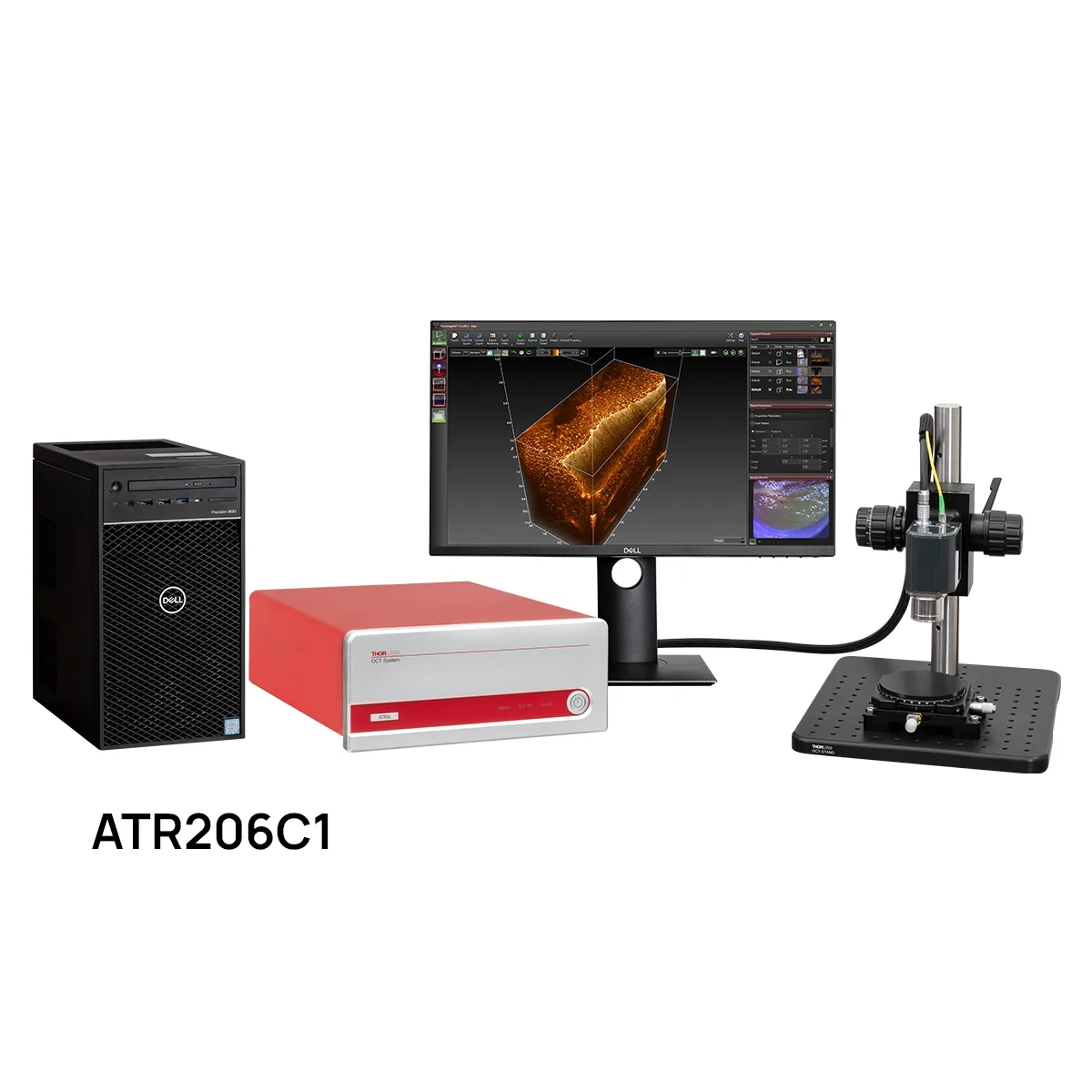

Atria Series SS-OCT Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Swept source OCT systems at 1060 nm built for long range imaging, using a MEMS-VCSEL source. The 60 kHz base unit reaches 20 mm of imaging depth in air, which suits large samples and industrial inspection.
Technical Specifications
| Parameter | Value |
|---|---|
| Centre wavelength | 1060 nm |
| Axial resolution in air | 11 micrometres |
| 60 kHz A-scan rate option | 20 mm imaging depth in air, 102 dB sensitivity |
| 200 kHz A-scan rate option | 6 mm imaging depth in air, 97 dB sensitivity |
| Specification | Includes computer and ThorImageOCT software package |
| Specification | Build-your-own and preconfigured systems available |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
