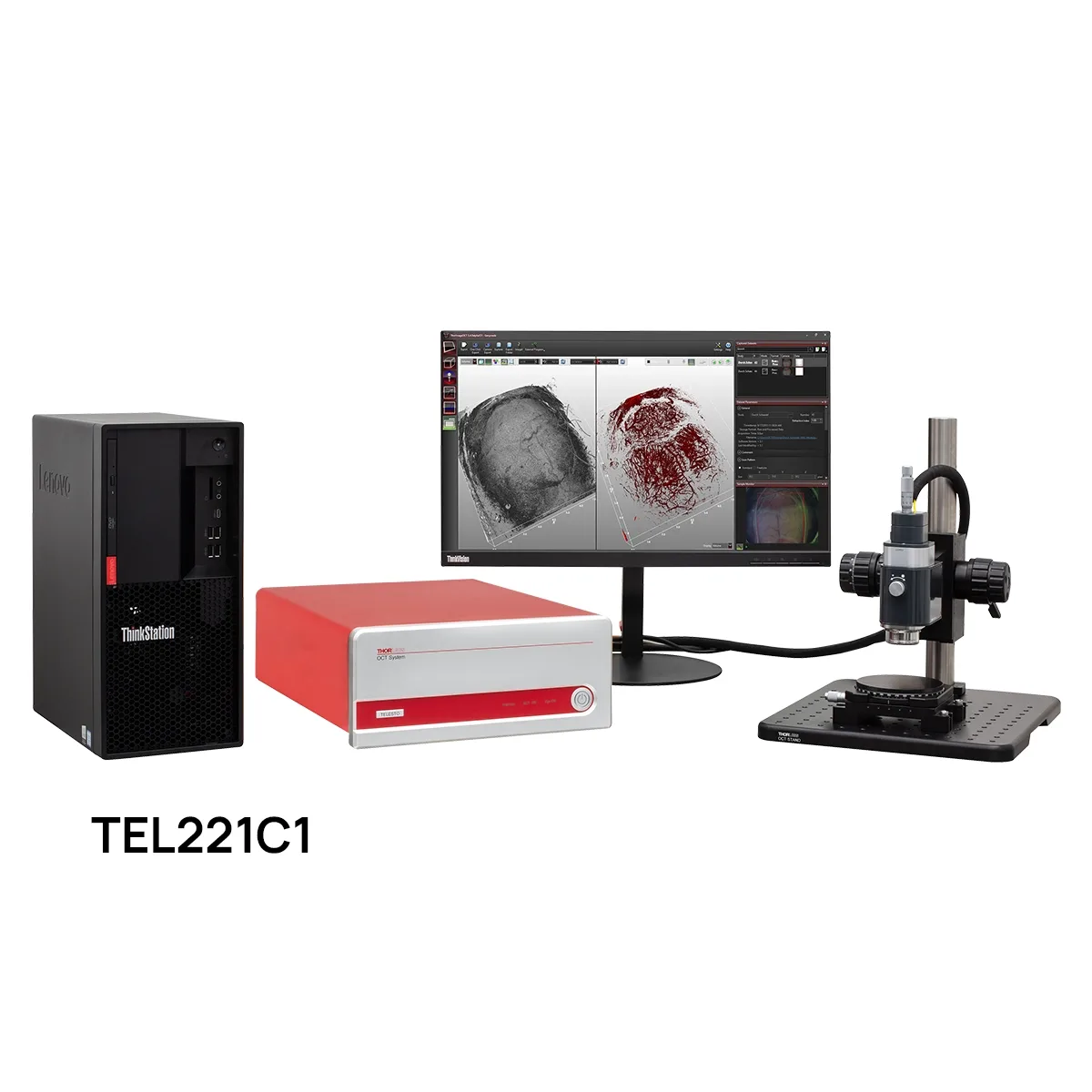

Telesto Series SD-OCT Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Spectral domain OCT systems at 1300 nm and 1315 nm, chosen when deeper penetration matters more than the finest axial resolution. Base units are offered at four A-scan rates with standard or user-customisable scanners.
Technical Specifications
| Parameter | Value |
|---|---|
| High resolution base unit | 3.5 mm imaging depth with 5.5 micrometre axial resolution in air at 1300 nm |
| High depth base unit | 6.0 mm imaging depth with 11.0 micrometre axial resolution in air at 1315 nm |
| Maximum A-scan rates | 76 kHz, 120 kHz, 146 kHz or 240 kHz |
| Specification | Includes computer and ThorImageOCT software package |
| Specification | Standard and user-customisable scanners available |
| Specification | Scan lens kits, sample Z-spacers and scanner stands available |
