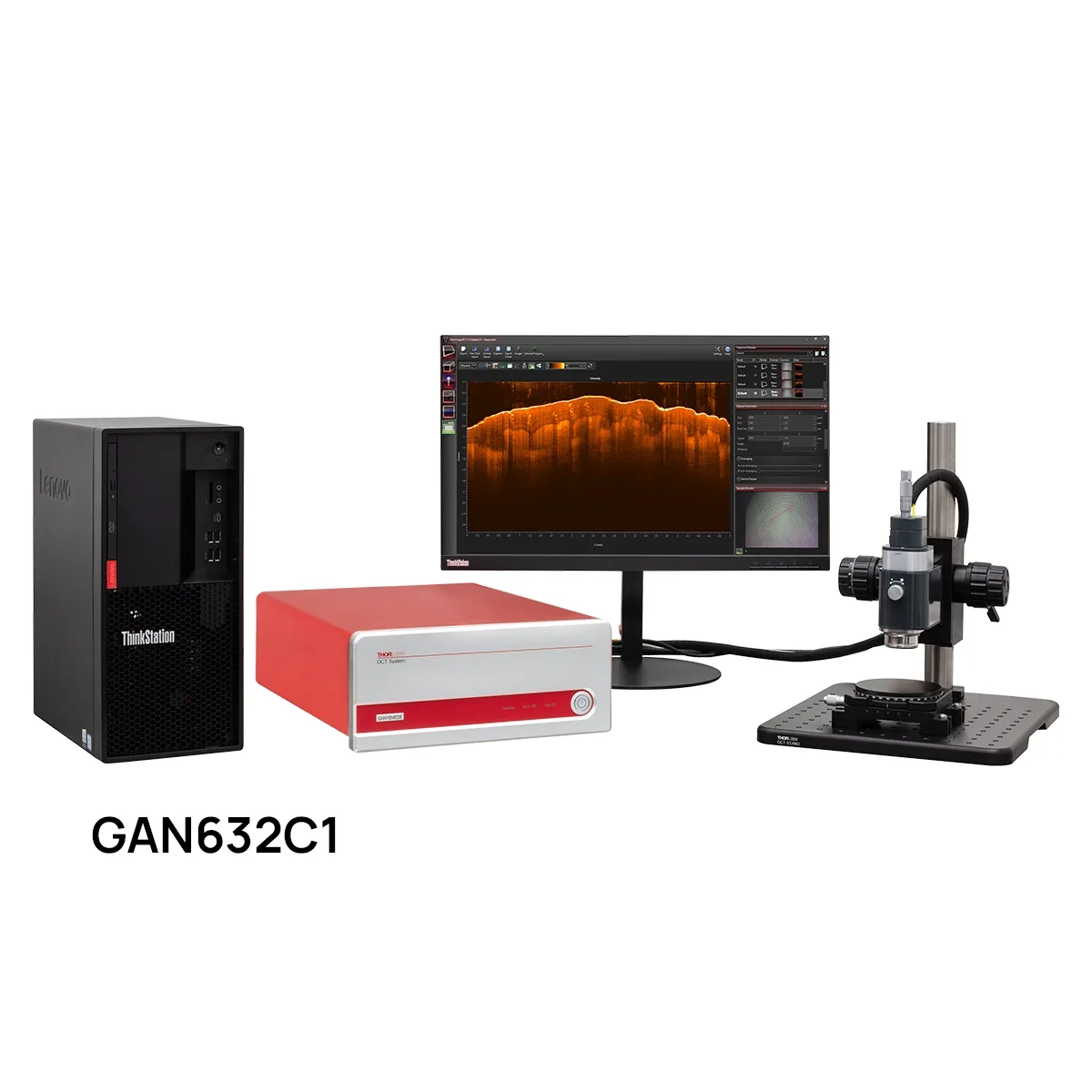

Ganymede Series SD-OCT Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Spectral domain optical coherence tomography systems at 880 nm, giving real-time cross sectional and volumetric images from backscattered light. They are supplied with a computer and ThorImageOCT software, preconfigured or built to order.
Technical Specifications
| Parameter | Value |
|---|---|
| Centre wavelength | 880 nm |
| Specification | A-scan rates up to 248 kHz |
| Specification | Imaging depths in air up to 3.4 mm |
| Specification | Axial resolutions in air from less than 3.0 micrometres to 6.0 micrometres |
| Specification | Sensitivities up to 106 dB |
| Specification | Data acquisition via USB 3.0 or CameraLink |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
