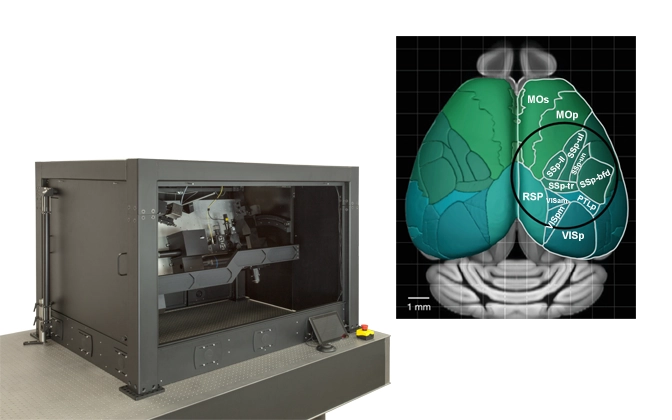

Multiphoton Mesoscope (2p-RAM)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A random access multiphoton mesoscope that keeps subcellular resolution across a 5 mm by 5 mm field, so activity in several brain regions can be followed at once. A remote focusing mirror shifts the focal plane without moving the objective.
Technical Specifications
| Parameter | Value |
|---|---|
| Field of view | 5 mm x 5 mm |
| Scan path wavelength range | 900 to 1070 nm |
| Specification | Excitation NA 0.6, collection NA 1.0 |
| Scan speed | 9.5 frames per second at about 1.2 micrometres per pixel over four 600 micrometre regions |
| Objective rotation | -20 to +20 degrees with 0.1 degree encoder resolution |
| Remote focusing mirror travel | 1 mm; epi detection with two GaAsP photomultipliers |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
