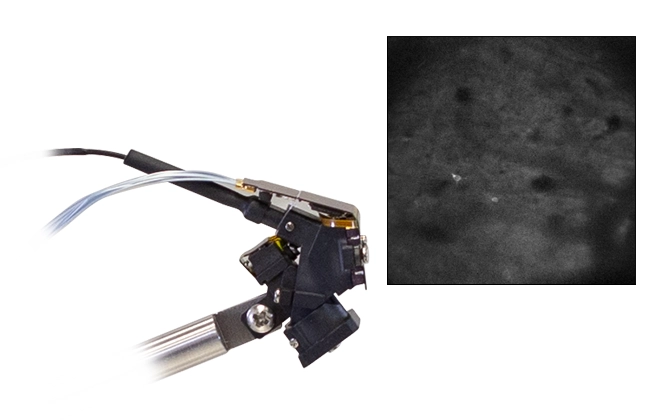

Mini2P Miniaturized Two-Photon Microscope
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A head-mounted two-photon miniscope for calcium imaging in freely moving animals, based on the published Mini2P design. A microtunable lens gives fast multiplane imaging and detection is on board with a silicon photomultiplier.
Technical Specifications
| Parameter | Value |
|---|---|
| Fast scanning configuration | 0.17 square millimetre field of view at 40 Hz, 256 x 256 pixels |
| Large field of view configuration | 0.25 square millimetres at 15 Hz, 256 x 256 pixels |
| Microtunable lens response time | less than 0.4 ms |
| Detector | silicon photomultiplier |
| Laser | 920 nm centre wavelength, 125 fs pulse width |
| Specification | Objective threading M5 x 0.5, interchangeable objectives from 3X to 7X |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
