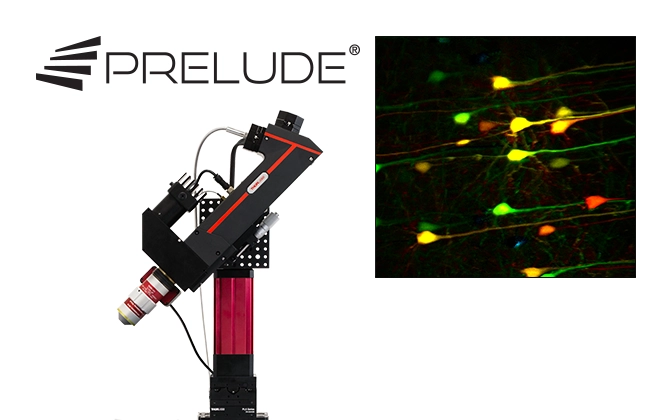

Prelude Functional Imaging Microscope
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A compact fibre coupled two-photon microscope built for functional imaging of GFP, needing no laser alignment. Motorised XYZ travel and manual rotation give access to samples that cannot be presented vertically.
Technical Specifications
| Parameter | Value |
|---|---|
| Scanner | 4.7 kHz resonant MEMS scanning, more than 12 fps at 512 x 512 pixels |
| Detection | PDA45 silicon photomultiplier |
| Motion | 25.4 mm of motorised travel in X, Y and Z, plus or minus 90 degrees manual rotation |
| Laser source | 920 nm centre wavelength, 125 fs pulse width |
| Field of view | 1600 x 1600 micrometres with the TL10X-2P at low scan rate |
| Objective threading | M32 x 0.75 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
