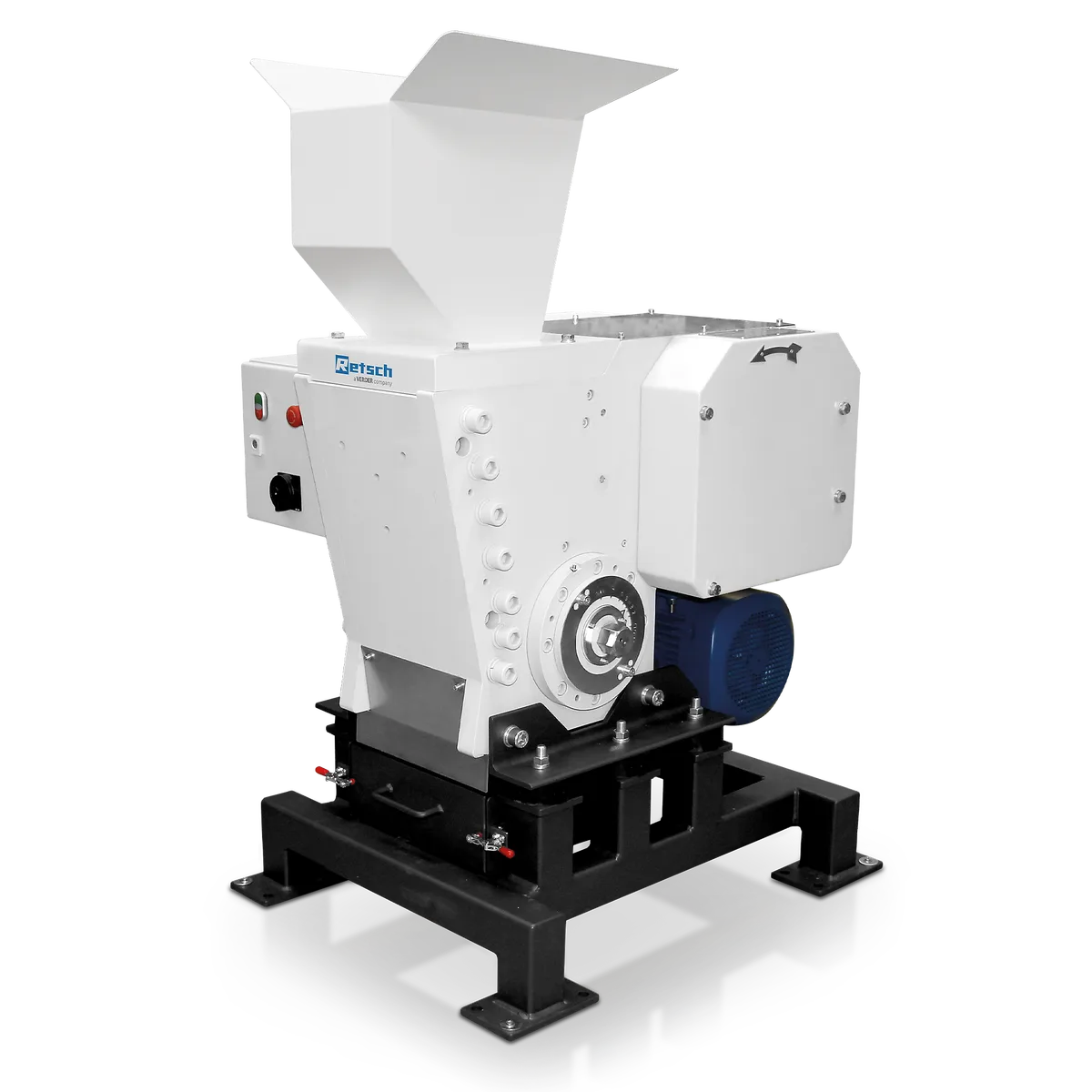

BB 500 XL: Jaw Crusher
Brand: Retsch | Category: Scientific & Laboratory Equipment
Jaw crusher with a steep crushing chamber and powerful drive, giving crushing kinematics that take 90 per cent of the product below 0.5 mm in a single pass. Throughput reaches 500 kg per hour, which suits mineral processing and cement laboratories handling continuous sample streams.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Max. feed size | 110 mm |
| Final fineness | 90% 0.5 mm |
| Throughput | 500 kg/h |
| Material of grinding tools | manganese steel, NiHard 4 |
| Jaw width | 250 x 130 mm |
| Gap width setting | 0 - 11 mm |
| Gap width display | scale |
| Hinged hopper | yes |
| Dust extraction unit | yes |
| Central lubrication | no |
| Process line version | optional |
| Collector capacity | 15 l |
| Drive | 3-phase motor |
| Drive power | 7.5 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
