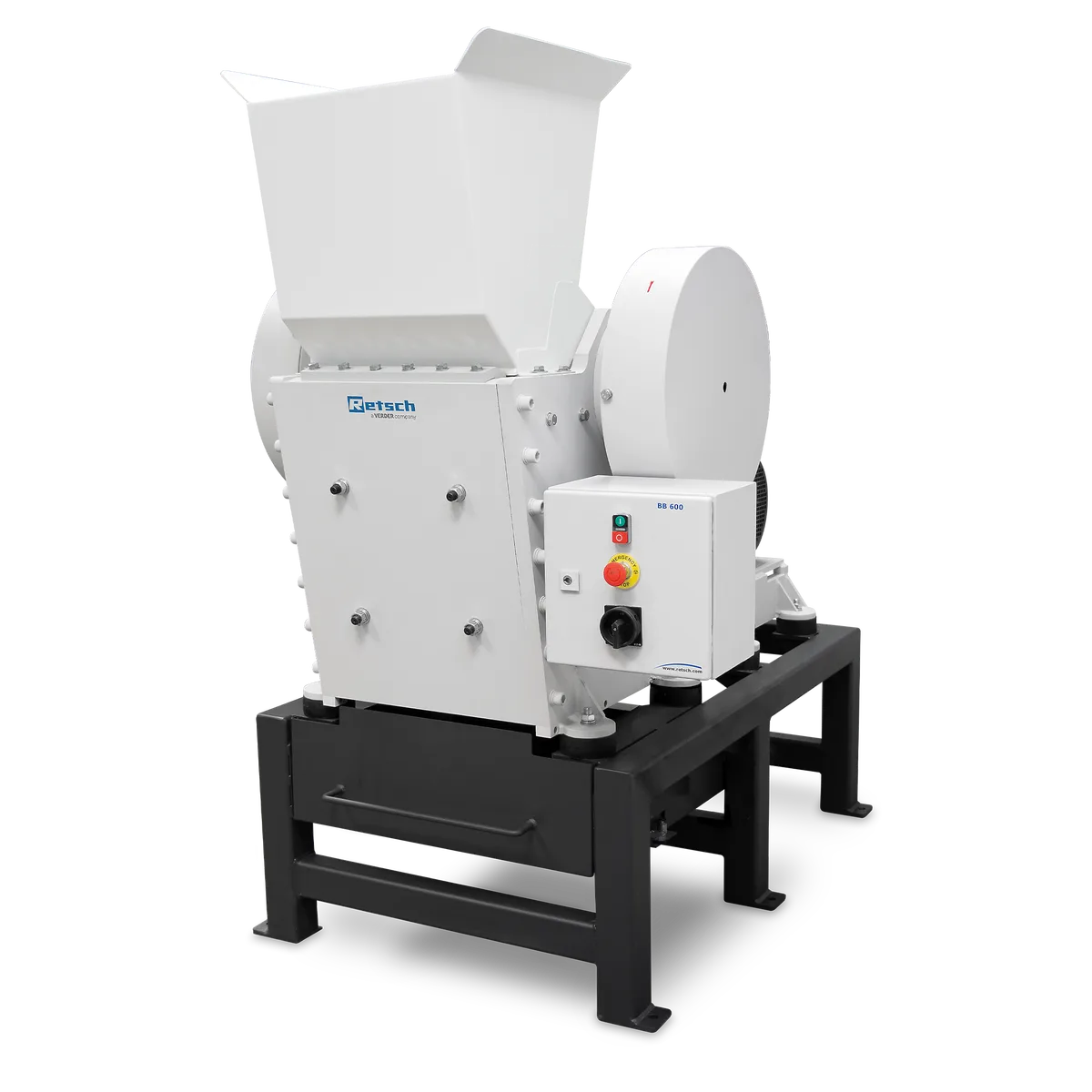

BB 600 XL: Jaw Crusher
Brand: Retsch | Category: Scientific & Laboratory Equipment
The largest jaw crusher in the Retsch range, taking the biggest feed pieces and delivering the highest throughput at 3500 kg per hour. Gap width is set with spacer plates from 6 mm to 60 mm. It is used where sample volumes are at pilot plant rather than laboratory scale.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Max. feed size | 110 mm |
| Final fineness | 90% 0.5 mm |
| Throughput | 500 kg/h |
| Material of grinding tools | manganese steel, NiHard 4 |
| Jaw width | 250 x 130 mm |
| Gap width setting | 0 - 11 mm |
| Gap width display | scale |
| Hinged hopper | yes |
| Dust extraction unit | yes |
| Central lubrication | no |
| Process line version | optional |
| Collector capacity | 15 l |
| Drive | 3-phase motor |
| Drive power | 7.5 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
