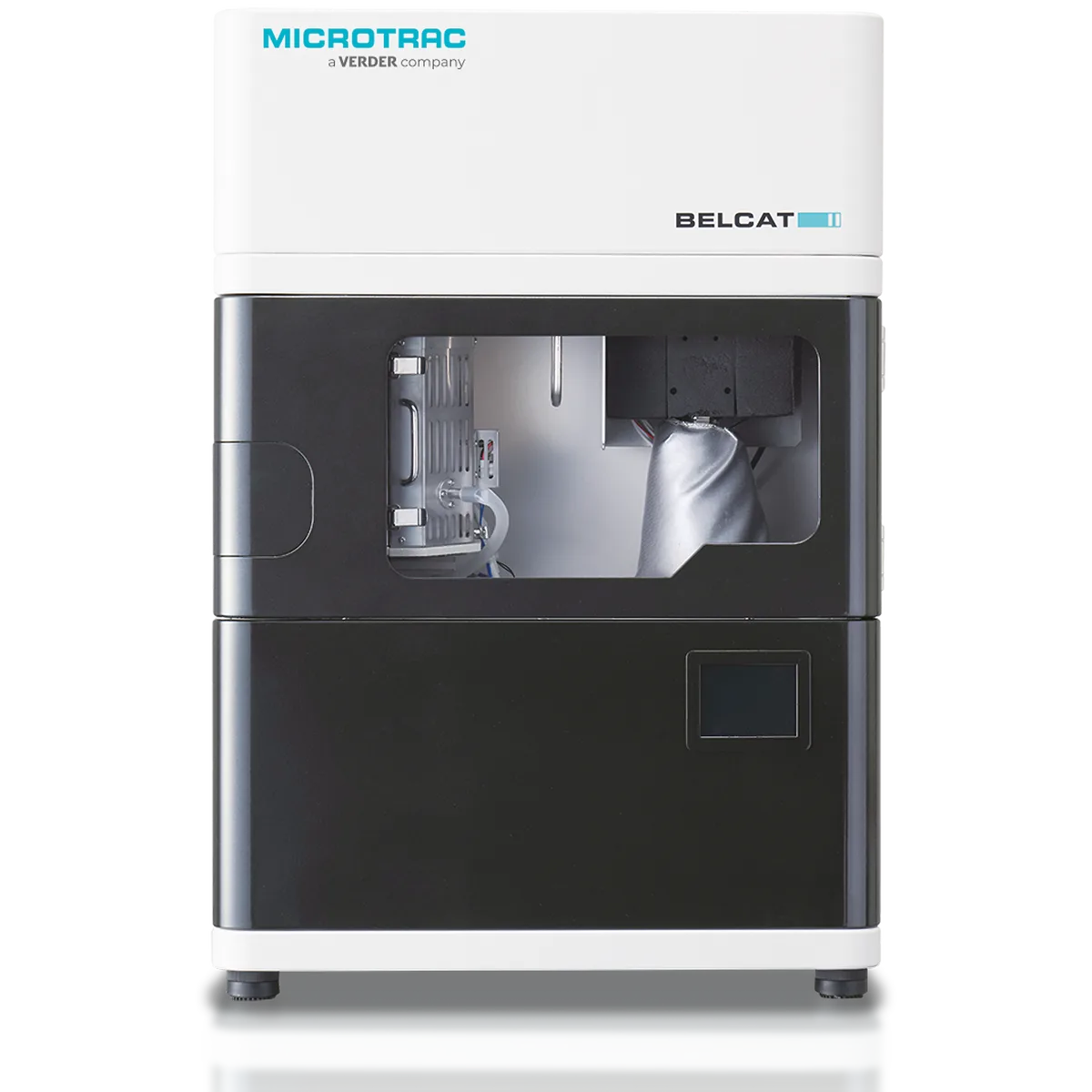

BELCAT II: Catalyst Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Chemisorption and temperature programmed analyser for catalyst characterisation, covering temperature programmed desorption, reduction and oxidation as well as pulse chemisorption. These measurements give active metal surface area and dispersion, which is what determines catalyst activity.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Detector | Semi-diffusion type 4-element thermal conductivity detector (TCD) |
| Measurement / pretreatment ports | 1 |
| Mass flow controller: Carrier gas line | F.S. 100 sccm |
| Mass flow controller: Mix line | F.S. 30 sccm |
| Mass flow controller: Pretreatment / pulse line | F.S. 100 sccm |
| Dimensions (W x H x D), weight | 500 x 750 x 500 mm, 80 kg |
| Requirement: Power supply | Single-phase, AC110 / 220V |
| Vapor (optional): Temperature range | Bubbling bottle: Pyrex, 100 cc, 3 to 100 °C, temperature control via Peltier element |
| CATCryo II (optional): Temperature control method | LN 2 spray + Heater |
| CATCryo II (optional): Temperature range | Temperature range: -120 ~ 1200°C (1.100°C for regular use) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
