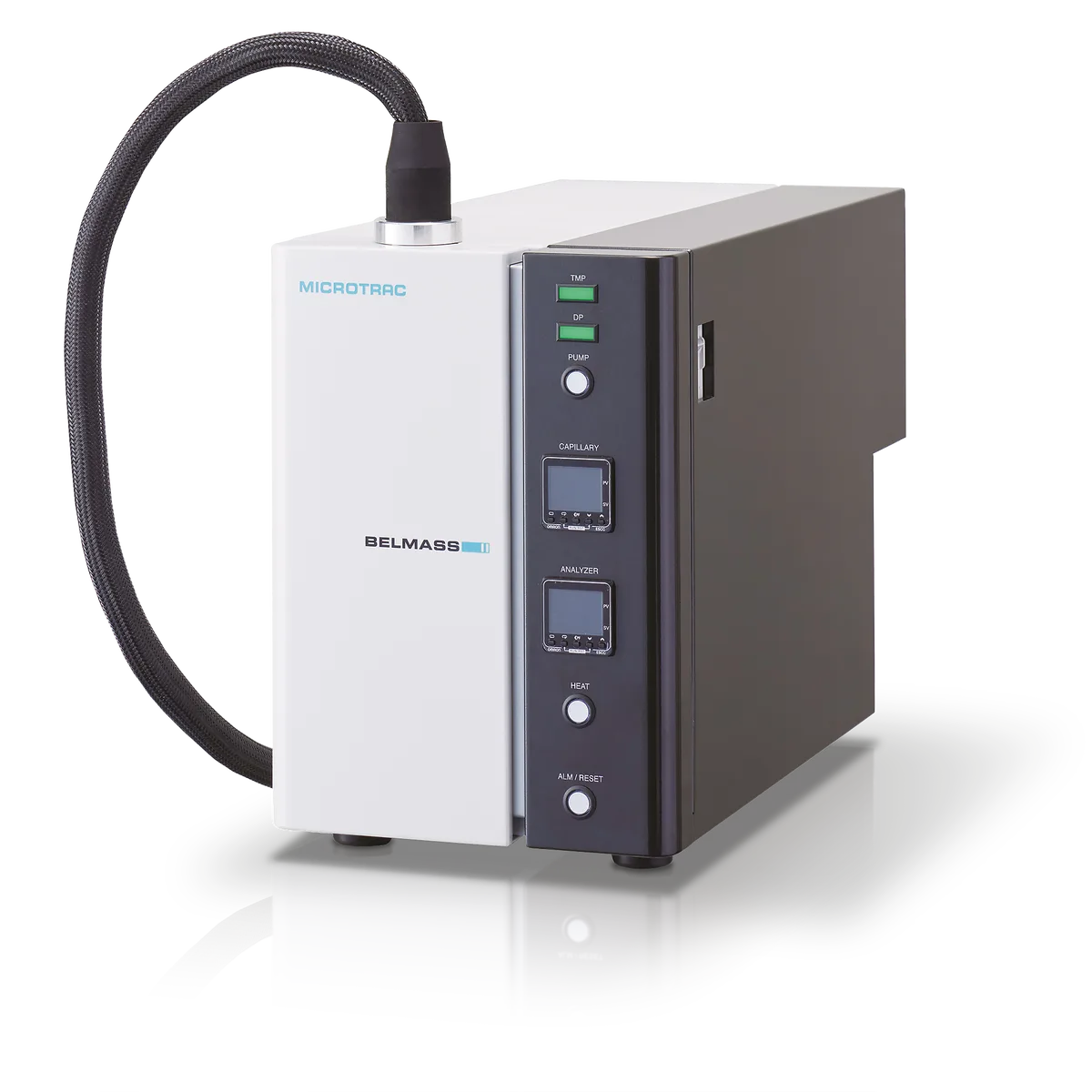

BELMASS II: Quadrupole Mass Spectrometer
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Quadrupole mass spectrometer that couples to the BELCAT analyser to identify the gases evolved during a temperature programmed experiment. Without it a thermal conductivity trace shows that something desorbed; with it, what desorbed can be named.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Maximum range | m/z = 1 ～ 200 |
| Resolution | M / -delta-M >= 2M |
| Capillary tube dimensions | OD = 1/16 inch; ID = 0.1 mm; L = 1.5 m |
| Hot hose length | 1 m |
| Maximum heating temperature of hot hose | 200°C (SUS) ; 120°C (PEEK) |
| Dimensions (W x H x D) | 280 × 400 × 600 mm (excluding capillary tube) |
| Analog signal input | DC0 to 10V (10 bit, 1 ch) |
| Weight | 36 kg |
| Power supply: Rated voltage | Single-phase: 100-120V (Indication 115V) ; AC: 200-240V (Indication 230V) |
| Power supply: Power frequency | 50 / 60 Hz |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
