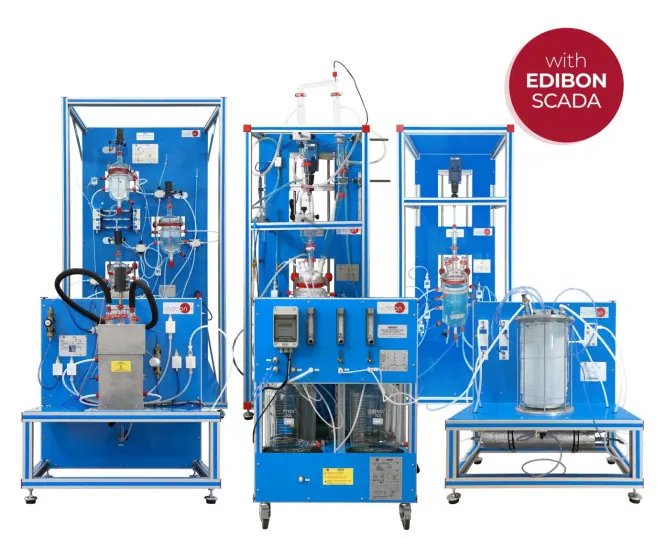

QRQC: Computer Controlled Chemical Reactors Training System
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A bench mounted training system for studying the behaviour of the main reactor types used in the chemical industry. Students compare batch, continuous stirred tank, tubular and adiabatic operation on the same service unit. Reagent tanks, dosing pumps and a thermostatic bath support kinetics and conversion experiments.
Technical Specifications
| Parameter | Value |
|---|---|
| Two dosing pumps, max. flow | 7 l/h |
| Flow meter to measure the sodium acetate flow, range | 0.54 to 5.4 l/h |
| Flow meter to measure the ethyl acetate flow, range | 0.7 to 7 l/h |
| Dimensions | 710 x 750 x 980 mm approx |
| Weight | 100 kg approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
