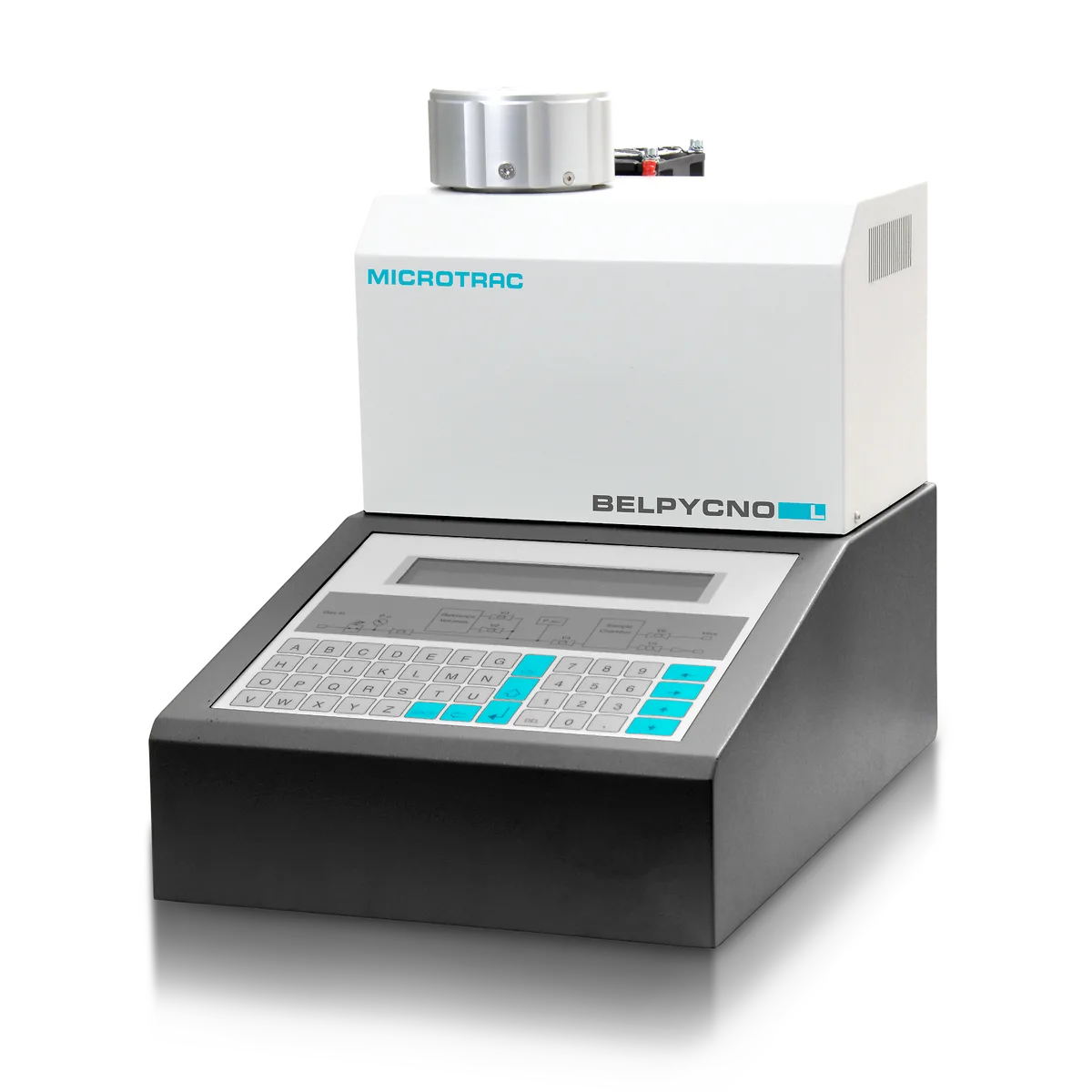

BELPYCNO L: Gas Pycnometer
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Larger chamber version of the BELPYCNO gas pycnometer, for samples too bulky for the standard cell. It uses the same gas displacement principle to give true density excluding open porosity.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Reference chamber volumes | Approx. 20, 40 and 60 cm³ |
| Sample chamber volumes | Approx. 4, 20, 40, 60, 100 and 150 cm³ |
| Temperature | 14° C to 40° C (optional 60° C with external oven) resolution: ± 0.01° C |
| Pressure transducer | 0.001 kPa displayed resolution |
| Accuracy | 0.01 % |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
