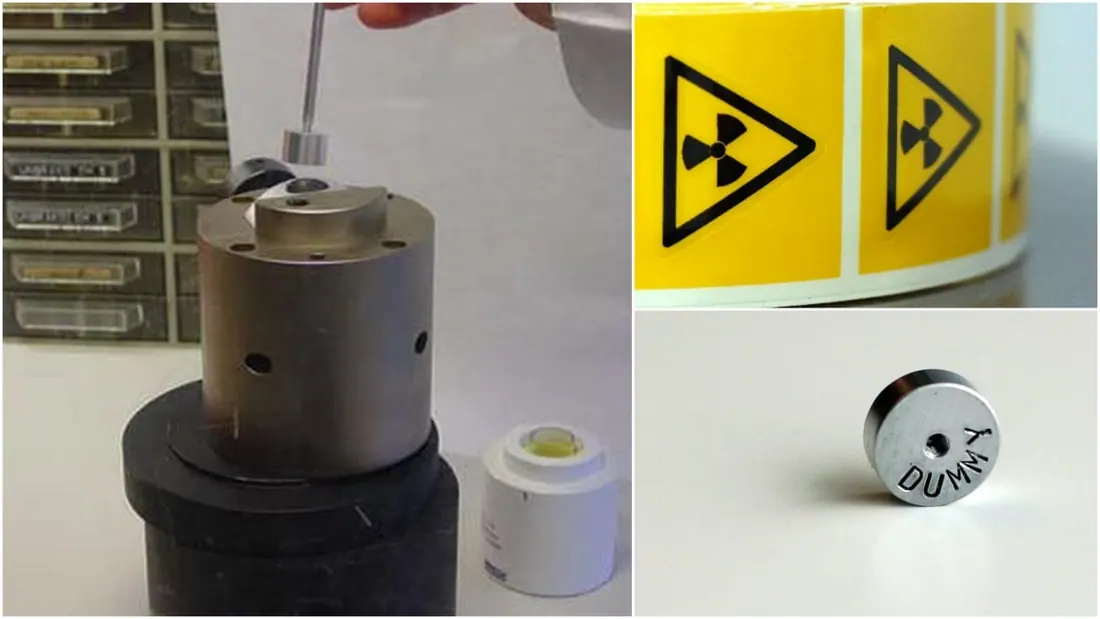

Beta Irradiator attachment
Brand: Riso | Category: Scientific & Laboratory Equipment
A detachable beta irradiator mounted above the sample carousel of the Riso TL/OSL reader, giving software controlled irradiation of samples in place. It carries a strontium 90 source and is used to deliver known laboratory doses during equivalent dose measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Normally fitted with a 1.48 GBq (40 mCi) 90Sr/90Y source |
| Specification | Maximum beta energy 2.27 MeV |
| Specification | Dose rate in quartz at the sample position about 0.1 Gy/s |
| Specification | Source to sample distance 7.6 mm |
| Specification | 0.125 mm beryllium window seals the measurement chamber vacuum |
| Specification | Sources of other activities available on request |
