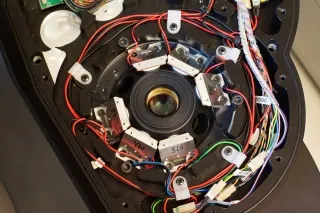

Detection and Stimulation Head (DASH)
Brand: Riso | Category: Scientific & Laboratory Equipment
A modular head for the Riso TL/OSL reader holding LED stimulation modules, an automated filter changer and an optional detector changer. It can be fitted retrospectively to existing readers and accepts attachments such as the single grain unit and the spectrometer.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Seven reflector modules for mounting stimulation LEDs |
| Specification | Standard fit of two blue modules at 470 nm, about 80 mW/cm2 |
| Specification | Two green modules at 525 nm, about 40 mW/cm2 |
| Specification | Three infrared modules at 850 nm, about 300 mW/cm2 |
| Specification | Filter changer of two layers with four positions each for 25 mm filters, stacked to 7.5 mm |
| Specification | Detector changer for up to three detectors, standard PMT Electron Tube PDM 9107Q-AP-TTL-03, 160 nm to 630 nm |
